UHF410 microphones
UHF410 wireless microphones
A pack to start with.
A range that lasts.
From the handheld mic straight out of the box to the antenna hidden in a false ceiling, the UHF410 range follows your installations without ever leaving it.
True Diversity UHF receiver, 514–564 MHz, 997 channels with automatic scanning, LCD screen, 19″ rack-mountable.
01The technology
True Diversity on both ends.
On most systems in this category, True Diversity stops at the receiver. On the UHF410, the handheld mic and the bodypack transmitter carry it too.
Two antennas monitor the signal at all times and the system continuously switches to whichever is better. The link is stabilised at the source, not merely rescued on arrival.
Paired in seconds.
SYNC sends the receiver’s setting straight to the transmitter, with no second setup. Auto-scan finds a free frequency without sweeping the band by hand. The LCD screen, on the receiver as well as on the transmitter, shows frequency, group, channel and battery. Unbox it, press once, it works — with no technician in the room.
True Diversitytransmitters and receiver
SYNC & Auto-scanpaired with one press
LCD screenfrequency, channel, battery02Integrator focus
The antenna that disappears.
Ceiling antenna with a built-in 9 dB booster, invisible mounting in a false ceiling. Ø 38 mm cut-out, ceilings up to 15 mm thick, powered over the coaxial cable at 8 – 12 V DC — no mains supply on site.
-
259,00 € incl. VATTrue diversity UHF receiver, 514-564 MHz, 997 channels with auto-scan, LCD display, half-rack, pairable to full rack width.
-
259,00 € incl. VATTrue diversity UHF receiver, 823-832 and 863-865 MHz bands, 442 frequencies with auto-scan and SYNC, LCD display, half-rack.
-
119,00 € incl. VATUHF diversity bodypack transmitter, mini XLR input for an optional headset or lavalier mic, 997 channels with Auto-scan.
-
119,00 € incl. VATTrue Diversity bodypack transmitter, mini XLR input for an optional headset or lavalier mic, 442 channels with Auto-scan.
-
119,00 € incl. VATWireless handheld mic with dynamic capsule, 997 channels with SYNC, 514-564 MHz.
-
119,00 € incl. VATWireless handheld mic with condenser capsule, True Diversity transmission, 442 channels with SYNC, 823-865 MHz.
-

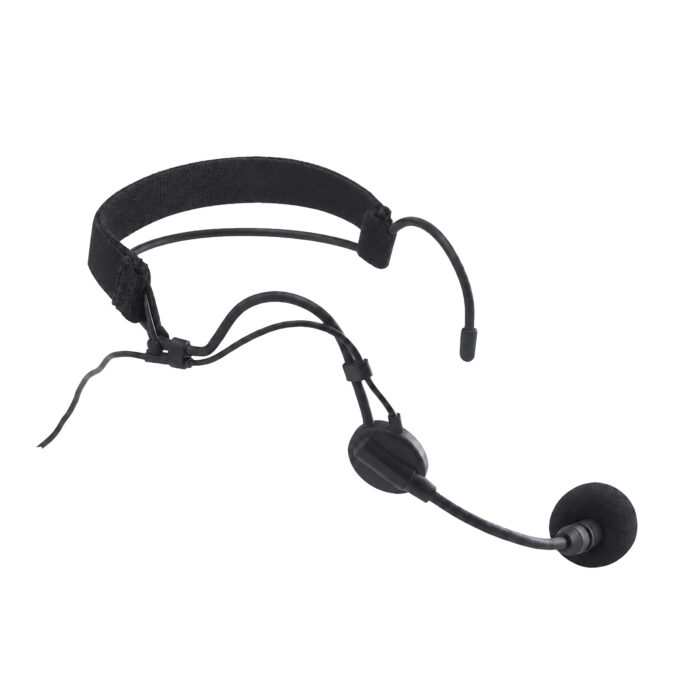

52,00 € incl. VATCondenser capsule headset mic, mini XLR connection, for UHF410 bodypack transmitters.
-
36,00 € incl. VATDiscreet condenser capsule lavalier mic, mini XLR connection, for UHF410 bodypack transmitters.

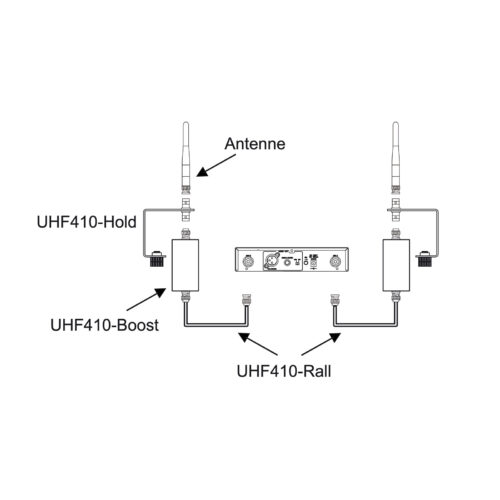

For poor reception or increased range, use UHF410-Boost signal boosters.
These boosters attach easily to the UHF410-Hold, which can be mounted on the boom of a microphone stand.
-

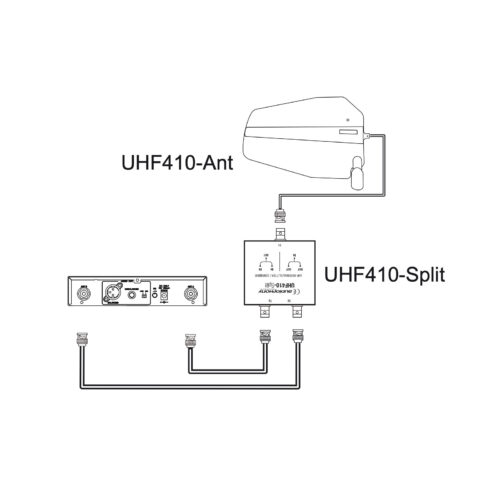

85,00 € incl. VAT2-in-1 splitter/combiner with BNC connectors, for sharing one antenna across two receivers or merging two lines into one.
-

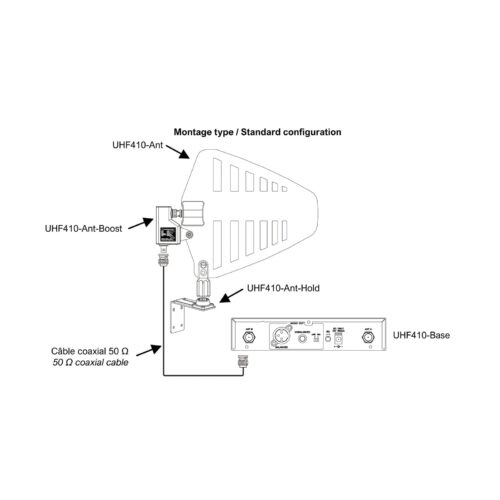

319,00 € incl. VATDirectional remote antenna, 5.5 dBi gain, BNC connector, extends range and sharpens reception for a UHF410 receiver installed away from the stage.
-
-
-
5,50 € incl. VATPanel-mount female-to-female BNC/BNC feedthrough connector, brings the antenna connection to the front of a UHF410-BASE receiver, whether coupled or mounted with the UHF410-Rack.
-
17,80 € incl. VATUniversal antenna mount with BNC connector, mic stand thread (5/8″) or wall mounting.
-
8,00 € incl. VATKit of 2 L-brackets to mount a UHF410-BASE-F5 or F8 receiver into a 19″ rack, alongside the rest of your gear.
-
-
04Resources
Documented in five languages.
The UHF410 manuals are available in French, English, German, Dutch and Spanish, all downloadable from the product pages. Enough to document your projects, at home and for export.
One range, every room.
Packs, antennas, boosters and connectors — find the whole UHF410 range on audiophony.com.
