PACK-UHF410-Hand-F5

A complete system, ready to deploy.
The PACK-UHF410-Hand-F5 bundles the UHF410-BASE-F5 receiver and the UHF410-HAND-F5 handheld mic, a complete UHF diversity wireless system for singing and speaking alike. Vocalists, hosts, speakers, teachers: whatever the use case, freedom of movement comes with a stable signal and consistent quality. A system built for live work and for permanent installs alike, ready to use straight out of the box.

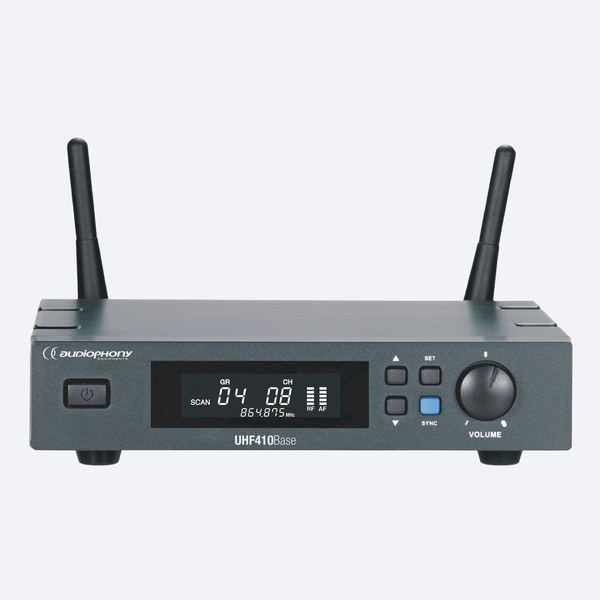

The receiver: reliable reception, even in a crowded RF environment.
The UHF410-BASE-F5 runs True Diversity reception: two antennas monitor the signal continuously, and the receiver switches to whichever delivers the best signal-to-noise ratio at any given moment. 997 programmable channels across 8 groups of 16 compatible channels, with manual, tact-switch, Auto-scan or SYNC selection depending on the need. An LCD display shows frequency, group, channel and RF/AF levels at a glance. Half-rack format, pairs to full 19″ width.

UHF410-BASE-F5

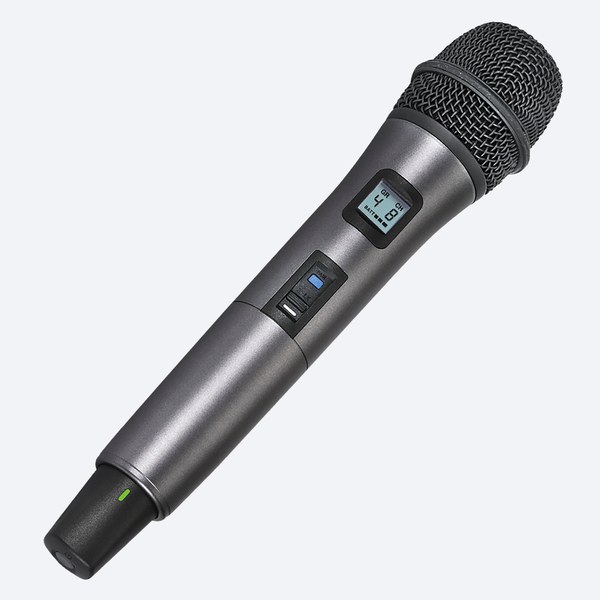

The mic: a capsule tuned for voice.
The UHF410-HAND-F5 runs a dynamic capsule tuned for a warm sound while keeping handling noise down. 997 programmable channels, with SYNC to push the receiver’s setting straight to the transmitter, no manual setup on either end. Metal body with a smooth finish, built-in mute switch, LCD display showing channel and battery level.

UHF410-HAND-F5

A case for storage and transport.
The receiver ships with its own carry case, sized to hold the whole system: receiver, mic, and cabling. A complete, protected kit with no extra case needed.

A system that grows with your setup.
The PACK-UHF410-Hand-F5 is just a starting point: the full UHF410 accessory range plugs straight into it as the job demands. The UHF410-Ant directional antenna to move reception out of a closed rack, signal boosters (UHF410-Boost, UHF410-Ant-Boost) to extend range on a long cable run, the discreet UHF410-Ant-CeilingF5 ceiling antenna for an invisible install, the UHF410-Split splitter to share one antenna across multiple receivers, or the UHF410-Rack bracket for 19″ rack mounting. The base pack scales up into a full professional install, without ever switching product lines.

Key features:

• Complete pack: True Diversity receiver + handheld mic
• 997 programmable channels, manual, tact-switch, Auto-scan or SYNC selection
• LCD display on both units (frequency/channel/battery)
• Dynamic capsule mic, metal body, mute switch
• Carry case included
• Half-rack format, pairs to full 19″ width
• Compatible with the full UHF410 accessory range

Technical specifications — UHF410-BASE-F5 receiver:

• Reception type: True Diversity
• Frequency range: 514 – 564 MHz
• Channels: 997 programmable, 8 groups of 16 compatible channels
• Channel selection: manual, tact switch, Auto-scan, SYNC
• Display: LCD (frequency, group, channel, RF, AF)
• Oscillator: PLL synthesizer
• Frequency stability: ± 0.005 %
• Modulation: FM
• THD: < 1 % (@1 kHz)
• Audio frequency response: 80 Hz to 18 kHz
• Audio outputs: balanced XLR, unbalanced 1/4″ jack
• Output level: line or mic
• Controls: front-panel rotary volume, rear-panel squelch
• Antennas: detachable BNC
• Power: 12 V DC (adapter included)
• Current draw: 260 mA ± 10 mA
• Dimensions: 200 × 42 × 183 mm (half-rack, pairs to full 19″)

Technical specifications — UHF410-HAND-F5 mic:

• Capsule type: dynamic
• Transmission type: True Diversity
• Frequency range: 514 – 564 MHz
• Output power: 35 mW (max.)
• Channels: 997 programmable, SYNC function
• Display: LCD (group, channel, battery level)
• Power: 2 AA 1.5 V batteries (not included)
• Average runtime: 10 hours
• Dimensions: 260 mm × Ø 54 mm

Package contents:

• 1 UHF410-BASE-F5 receiver with carry case
• 1 UHF410-HAND-F5 handheld mic
• 1 12 V DC mains adapter
