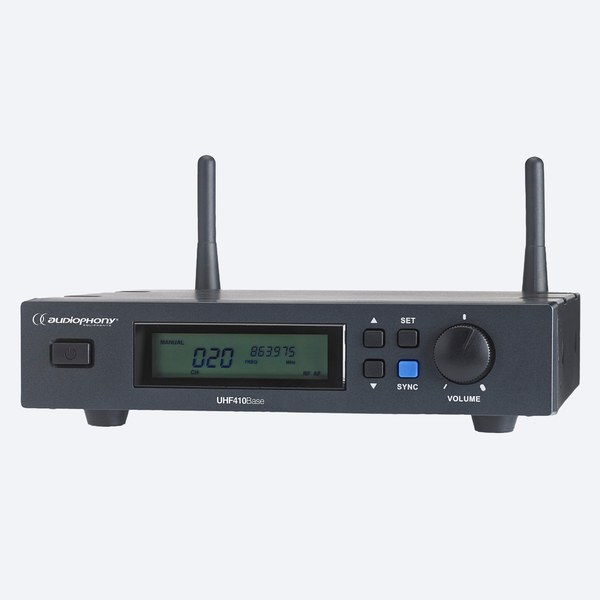

UHF410-Base RECEIVER
– True Diversity receiver – Frequency range: UHF 823~832 and 863 ~ 865 MHz – 40 programmed frequencies with Auto-scan function – Channel presets: 4 groups, 4 compatible channels in each group
– Channel selection mode: Tact Switch, Auto-Scan, SYNC
– LCD display: frequency, group, channel, RF & AF
– Balanced and unbalanced audio output on XLR and 6.35 mono jack
– Line or Micro level
– Oscillator: PLL Synthesizer
– Frequency stability: ± 0.005%.
– Modulation mode: FM
– T.H.D. : <1% (@ 1 KHz) – Audio frequency response: 80 Hz to 18 kHz
– Volume control by rotary switch on the front panel
– Squelch adjustment by rotary switch at the back
– Detachable BNC antennas, many accessories available
– Power supply: 12 V DC (adapter included)
– Current consumption: 260 mA ± 10 mA
– Dimensions: 200 x 42 x 183 mm (Rackable 19 inches by two)

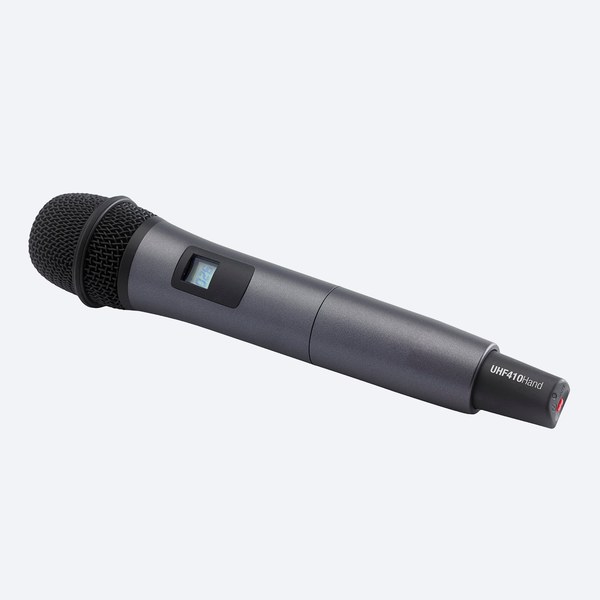

UHF410-Hand transmitter
– True Diversity transmitter
– Frequency range: UHF 863 ~ 865 MHz
– Output power: 10 mW (max.)
– 40 programmed frequencies with SYNC function
– LCD display: channel, battery level
– Power supply: 2 x AA 1.5 V batteries (not included)
– Average operating time: 10 hours
– Dimensions: 260 x diam 54 mm
