NOMAD
Designed to follow you everywhere.
The NOMAD portable loudspeaker combines performance and versatility. Whether on a stand, on the floor or on a table, it adapts to any situation for optimal sound reinforcement.
Highlights.
Lithium battery
Until
0
hours
Ideal range for live performances.
POWER
0
wattsRMS.
8-inch woofer with coaxial compression driver.
Intuitive mixing interface
Multifunction controls with visual lighting.
Multifunction controls with visual lighting.
Versatility and power
3 modes of use.
The NOMADE loudspeaker adapts to all configurations: front, rear or combined. Its versatile format allows floor, vertical or inclined installation, as well as use on speaker stands.
It features a standard 35 mm base plate. And for a neat visual effect when the stand is not in use, this base is concealed behind an elegant removable cover.
A floor installation
Vertical or inclined
on a support
on a support
On speaker stands
A compact loudspeaker
with plenty of power.
with plenty of power.
And because the NOMAD is first and foremost aimed at music lovers, its
bi-amplification meets the most demanding quality standards
audio: a harmonic distortion rate (THD) of less than 0.1% and an inaudible background noise level, measured at less than -64 dB.
Reliability is also a priority, with thermal protection and an integrated signal limiter, ensuring safe use – even for novice users.
bi-amplification meets the most demanding quality standards
audio: a harmonic distortion rate (THD) of less than 0.1% and an inaudible background noise level, measured at less than -64 dB.
Reliability is also a priority, with thermal protection and an integrated signal limiter, ensuring safe use – even for novice users.
The NOMAD loudspeaker features Class D bi-amplification delivering 200 W RMS (up to 400 W peak), for a maximum sound pressure level of 121 dB SPL at 1 m.
A level perfectly suited to stage monitors, DJ monitoring, or voice and music broadcasting, both indoors and out.
A level perfectly suited to stage monitors, DJ monitoring, or voice and music broadcasting, both indoors and out.
Sound quality and audio processing
The sound precision
of coaxial.
of coaxial.
The NOMAD loudspeaker incorporates an 8″ coaxial driver, with a 1″ Peek diaphragm high driver and a Bass-Reflex system.
This technological choice offers ultra-precise, non-aggressive sound reproduction, whatever the listening volume or distance from the loudspeaker.
A technical choice
with many advantages
High-frequency clarity.
Ideal for voice and instruments
Ideal for voice and instruments
Dynamic, well-defined and well-defined
Consistent accuracy across the entire spectrum, with even diffusion at 75°, even from a distance
Guaranteed pure sound.
At the heart of NOMAD, an Analog Devices processor manages inputs, outputs, effects and mixing.
The signal, digitized by a 56-bit Dual A/D converter, offers a signal-to-noise ratio in excess of 100 dB (104 dB measured).
A guarantee of fidelity and high-end reproduction on all your sources.
The signal, digitized by a 56-bit Dual A/D converter, offers a signal-to-noise ratio in excess of 100 dB (104 dB measured).
A guarantee of fidelity and high-end reproduction on all your sources.
Connectivity and User Experience
Purity and versatility.
Enter the pro world.
NOMAD accepts all your sources – guitar, bass, keyboard, microphone, DJ controller or external PA.
Plug in your smartphone, tablet or computer, wired or wireless.
No need for a DI or preamp.
Choose the mode, adjust the volume, NOMAD manages the signal with high-quality audio processing for pure sound.
NOMAD accepts all your sources – guitar, bass, keyboard, microphone, DJ controller or external PA.
Plug in your smartphone, tablet or computer, wired or wireless.
No need for a DI or preamp.
Choose the mode, adjust the volume, NOMAD manages the signal with high-quality audio processing for pure sound.
Thanks to its built-in, removable lithium battery, you can use it continuously for up to 12 hours, even away from an electrical socket – without any loss of power.
The battery recharges automatically as soon as the speaker is connected to the mains. No external charger required, and no need to switch off the speaker while charging.
The battery recharges automatically as soon as the speaker is connected to the mains. No external charger required, and no need to switch off the speaker while charging.
Nomad and homebody.
Review your sound or play discreetly: the mini-jack headphone output lets you use all NOMAD features without disturbing anyone else.
Its linear amplification preserves the balance between your instruments and effects, even at low volume – ideal for home rehearsals.
Its linear amplification preserves the balance between your instruments and effects, even at low volume – ideal for home rehearsals.
Advanced features and effects
Integrated
professional effects.
professional effects.
NOMAD’s 2 Mic/Line inputs feature a professional reverb, adjustable directly from the mixer, ideal for enhancing vocals or keyboards.
Each also benefits from 3-way equalization to refine your sound to perfection.
The 2 Mic/Instrument inputs offer the same reverb effects, adjustable chorus, and 2-way equalization to suit the specific characteristics of acoustic or electric guitars.
And so that you always have the essentials at hand during your performance – scores, lyrics, or music applications – the NOMAD features a USB 2.1A port capable of powering a tablet or smartphone.
No more forgotten lyrics or battery cuts in the middle of a concert!
No more forgotten lyrics or battery cuts in the middle of a concert!
Modern connectivity
Bluetooth 5.0
The NOMAD speaker features Bluetooth 5.0 technology, offering extended range, optimized data rate, reduced latency and better resistance to interference – all without over-consuming power.
Connect your smartphone, tablet or computer directly to stream your music wirelessly and without loss of quality, whether from your favorite streaming apps or locally stored audio files.
Is your device not Bluetooth 5.0 compatible?
Don’t worry: the NOMAD speaker is fully backwards compatible with previous generations of Bluetooth.
And for even greater flexibility, you can always opt for an analog wired connection via the mini-jack input.
Connect your smartphone, tablet or computer directly to stream your music wirelessly and without loss of quality, whether from your favorite streaming apps or locally stored audio files.
Is your device not Bluetooth 5.0 compatible?
Don’t worry: the NOMAD speaker is fully backwards compatible with previous generations of Bluetooth.
And for even greater flexibility, you can always opt for an analog wired connection via the mini-jack input.
TWS technology.
Thanks to True Wireless Stereo (TWS) technology, the NOMAD speaker lets you broadcast your music in true stereo via Bluetooth.
Simply connect your Bluetooth smartphone, tablet or PC to a first NOMAD speaker, then pair a second speaker.
The two speakers automatically synchronize to separate the left and right channels, with no perceptible latency. This feature is compatible with both your streaming applications and your local music library.
Simply connect your Bluetooth smartphone, tablet or PC to a first NOMAD speaker, then pair a second speaker.
The two speakers automatically synchronize to separate the left and right channels, with no perceptible latency. This feature is compatible with both your streaming applications and your local music library.
When you love, you protect.
The NOMAD is equipped with rubber protectors on both sides, designed to absorb vibrations and protect the cabinet from scratches, whether the speaker is placed on the floor, upright or in the upright position.

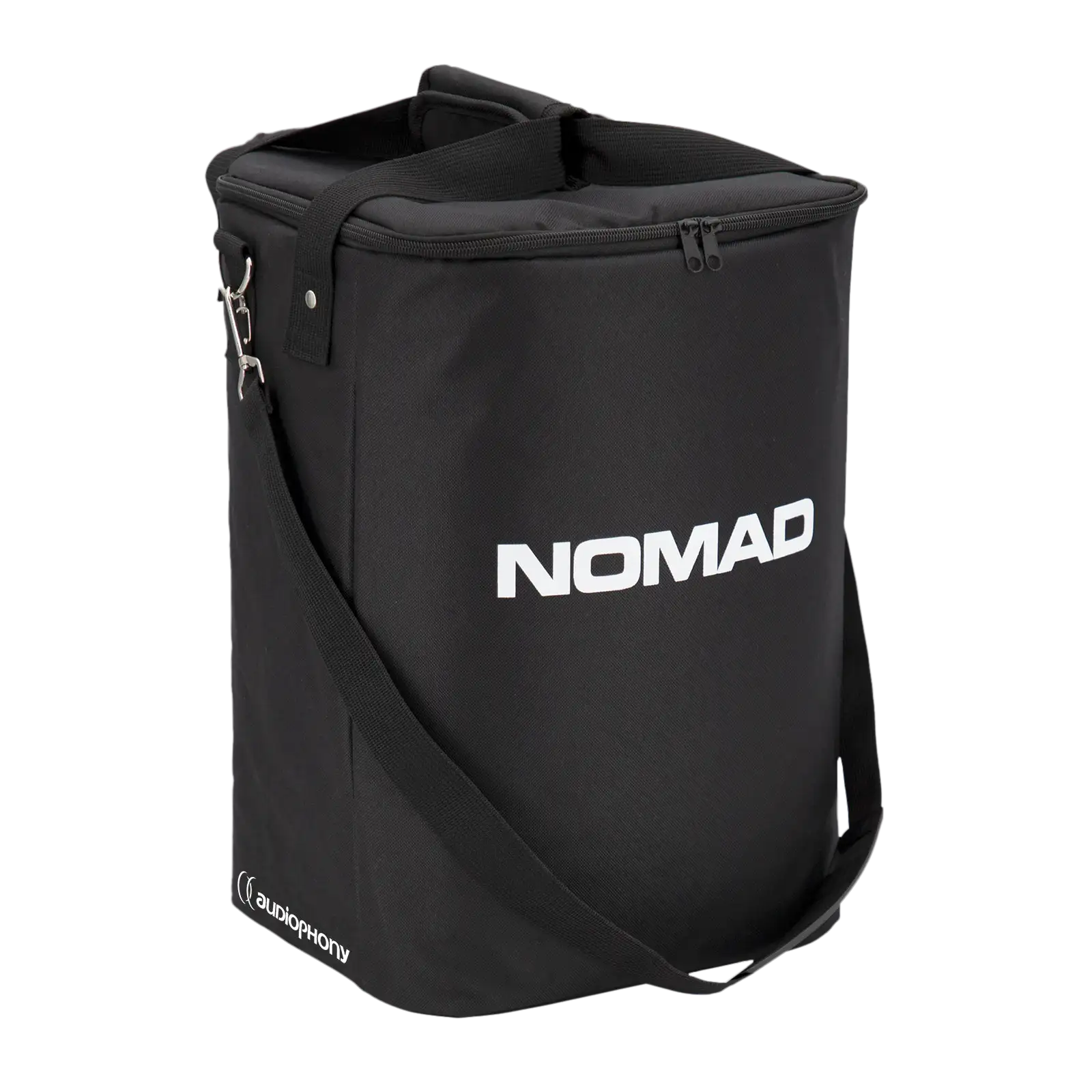

The NOMAD protective case* is specially designed to carry and protect your NOMAD speaker on the move. Made from sturdy, hard-wearing fabric, it features a zipped closure to secure the speaker, as well as a handle and adjustable shoulder strap for easy, comfortable transport.
Its compact, streamlined design, adorned with the NOMAD logo, provides effective protection against shocks, dust and splashes, making it easy to travel and store your speaker with complete peace of mind.
Its compact, streamlined design, adorned with the NOMAD logo, provides effective protection against shocks, dust and splashes, making it easy to travel and store your speaker with complete peace of mind.
*Thecover is optional.
A dedicated app.
Unleash the full potential of your NOMAD speaker with the “NOMADcontrol” application.
Master
The NOMADcontrol application’s main “Master” tab gives the user quick access to the NOMAD speaker’s overall volume control, with a clear interface for precisely increasing or decreasing sound level.
It also allows you to select the audio output mode according to the position of the speaker (floor-standing, backstage or floor-standing), guaranteeing optimum sound reproduction in every configuration by simply pressing the desired mode.
It also allows you to select the audio output mode according to the position of the speaker (floor-standing, backstage or floor-standing), guaranteeing optimum sound reproduction in every configuration by simply pressing the desired mode.
Channel
The NOMADcontrol application’s “Channel” tab allows each speaker input to be managed separately, giving the user precise access to settings according to the selected channel (CH1 to CH5).
For each channel, you can adjust volume, equalization (treble, midrange, bass) and, depending on the type of input, add appropriate effects such as reverb or chorus.
The CH1 and CH2 channels feature a MIC/LINE selector for connecting a microphone or line source, with phantom power for electret mics.
Channels CH3 and CH4 are optimized for instruments, especially guitar, thanks to a LINE/GUITAR selector and the possibility of applying the chorus effect in addition to the reverb.
Finally, the CH5 channel accommodates a stereo line or Bluetooth source, with volume and EQ controls, but no additional effects: ideal for music broadcasting.
This flexibility, accessible via an intuitive mobile interface, allows the sound to be optimized according to the connected equipment and the user’s needs.
For each channel, you can adjust volume, equalization (treble, midrange, bass) and, depending on the type of input, add appropriate effects such as reverb or chorus.
The CH1 and CH2 channels feature a MIC/LINE selector for connecting a microphone or line source, with phantom power for electret mics.
Channels CH3 and CH4 are optimized for instruments, especially guitar, thanks to a LINE/GUITAR selector and the possibility of applying the chorus effect in addition to the reverb.
Finally, the CH5 channel accommodates a stereo line or Bluetooth source, with volume and EQ controls, but no additional effects: ideal for music broadcasting.
This flexibility, accessible via an intuitive mobile interface, allows the sound to be optimized according to the connected equipment and the user’s needs.
Scene
The NOMADcontrol application’s “Scenes” function lets you save and instantly recall all your customized NOMAD speaker settings.
At any time, the user can save the complete configuration of each channel – equalization, effects, levels and selectors – as separate scenes.
This makes it easy to create different soundscapes to suit any situation, be it a concert, a rehearsal or a presentation.
From the interface, simply select a scene to immediately apply the desired settings, or create new ones to meet specific needs.
At any time, the user can save the complete configuration of each channel – equalization, effects, levels and selectors – as separate scenes.
This makes it easy to create different soundscapes to suit any situation, be it a concert, a rehearsal or a presentation.
From the interface, simply select a scene to immediately apply the desired settings, or create new ones to meet specific needs.
Setting
The “Firmware Version” section of the NOMADcontrol application lets users check at a glance the current version of their NOMAD speaker’s internal software, and compare it with the most recent version available.
If an update is offered, simply click on the “Download” button to start the download and benefit from the latest enhancements and features, directly from the application.
This system ensures that the speaker is always up to date and optimized, without the need for a computer connection.
If an update is offered, simply click on the “Download” button to start the download and benefit from the latest enhancements and features, directly from the application.
This system ensures that the speaker is always up to date and optimized, without the need for a computer connection.
NOMAD, from every angle.
Bluetooth 5.0
Easily connect a second speaker via the TWS function for a true stereo experience, without any wires.
Intuitive control
Its ergonomic mixing module with multi-function buttons and illuminated display makes adjustments a snap.
Full connectivity
Connect up to two microphones, two instruments and an auxiliary source for unlimited performance.
Entries :
– 2 inputs on COMBO XLR/JACK with Line/Mic and Reverb switch
– 2 inputs on COMBO XLR/JACK with Line/Guitar Reverb and Chorus switch
– 1 Aux / Bluetooth input
– 2 inputs on COMBO XLR/JACK with Line/Mic and Reverb switch
– 2 inputs on COMBO XLR/JACK with Line/Guitar Reverb and Chorus switch
– 1 Aux / Bluetooth input
Outputs:
– 1 Mix OUT on XLR for connecting an external loudspeaker or system
– 1 headphone output for monitoring
– Bluetooth TWS connectivity for wireless pairing with a second compatible loudspeaker
– 1 Mix OUT on XLR for connecting an external loudspeaker or system
– 1 headphone output for monitoring
– Bluetooth TWS connectivity for wireless pairing with a second compatible loudspeaker
Settings :
– Multifunction knob for adjusting volume, treble, mid and bass frequencies, as well as audio effects
– Input level selector with 48V phantom power, can be activated
– Integrated DSP with presets for optimization according to use: stand, monitor
– Independent headphone volume control
– Master volume control
– Multifunction knob for adjusting volume, treble, mid and bass frequencies, as well as audio effects
– Input level selector with 48V phantom power, can be activated
– Integrated DSP with presets for optimization according to use: stand, monitor
– Independent headphone volume control
– Master volume control
