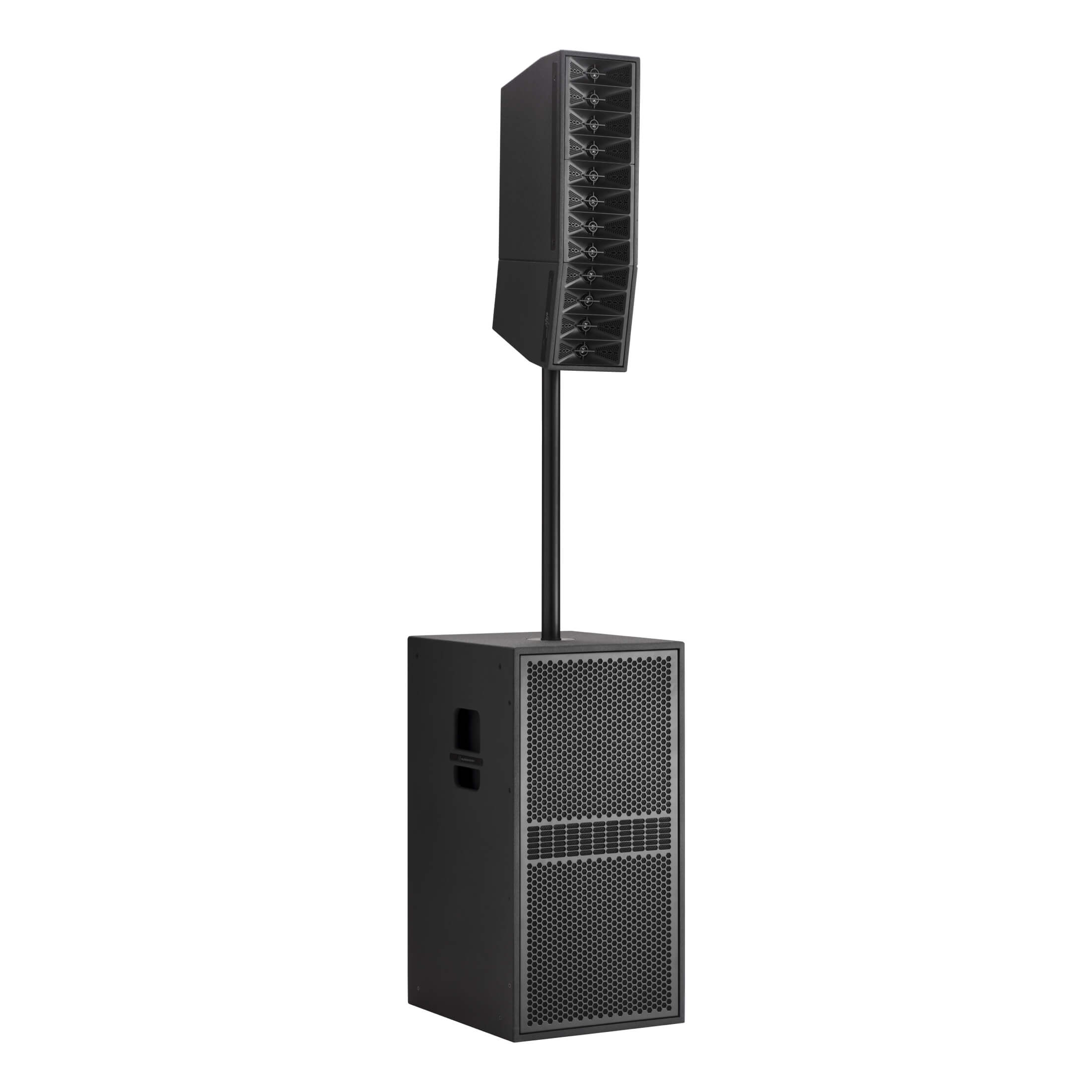

MOJO Signature

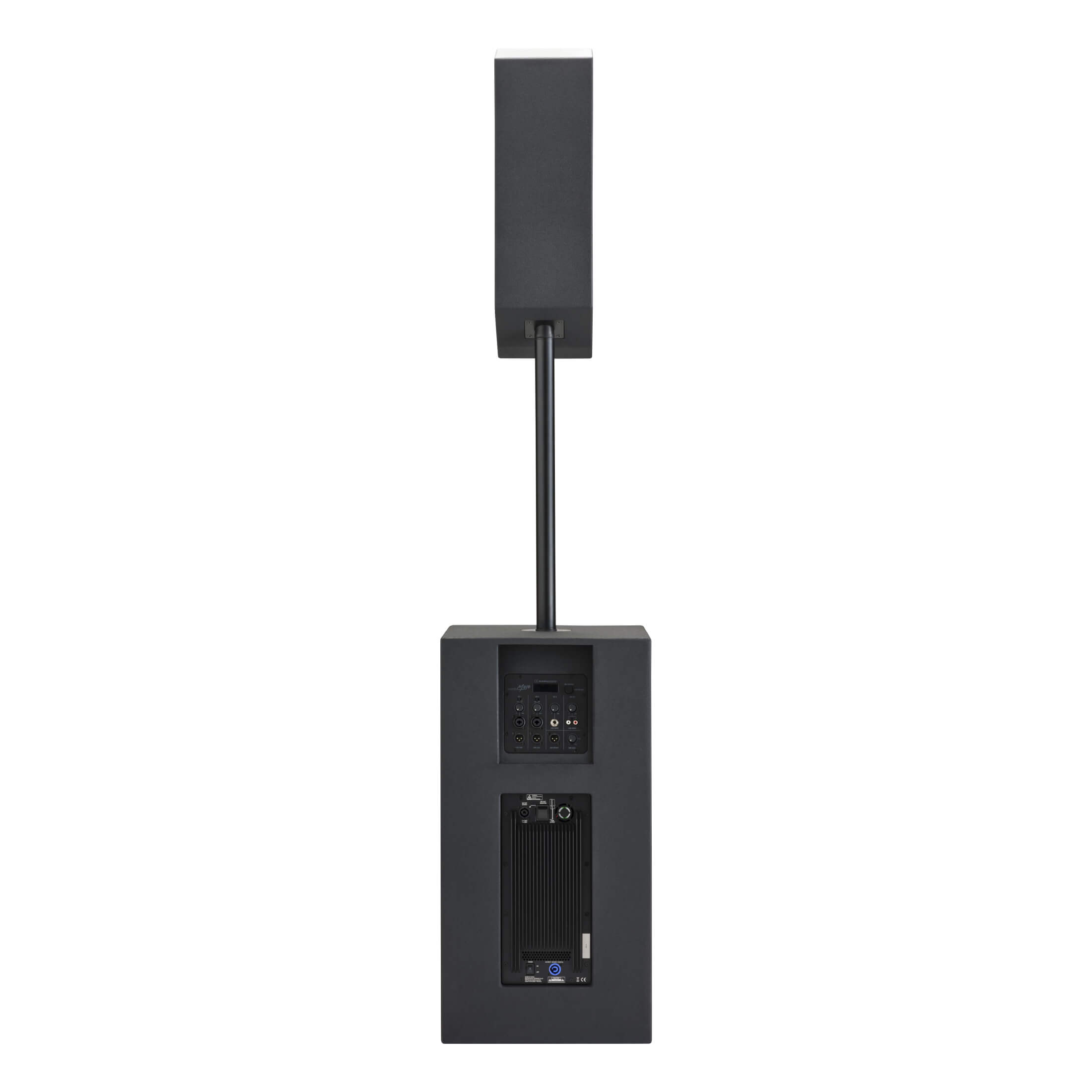

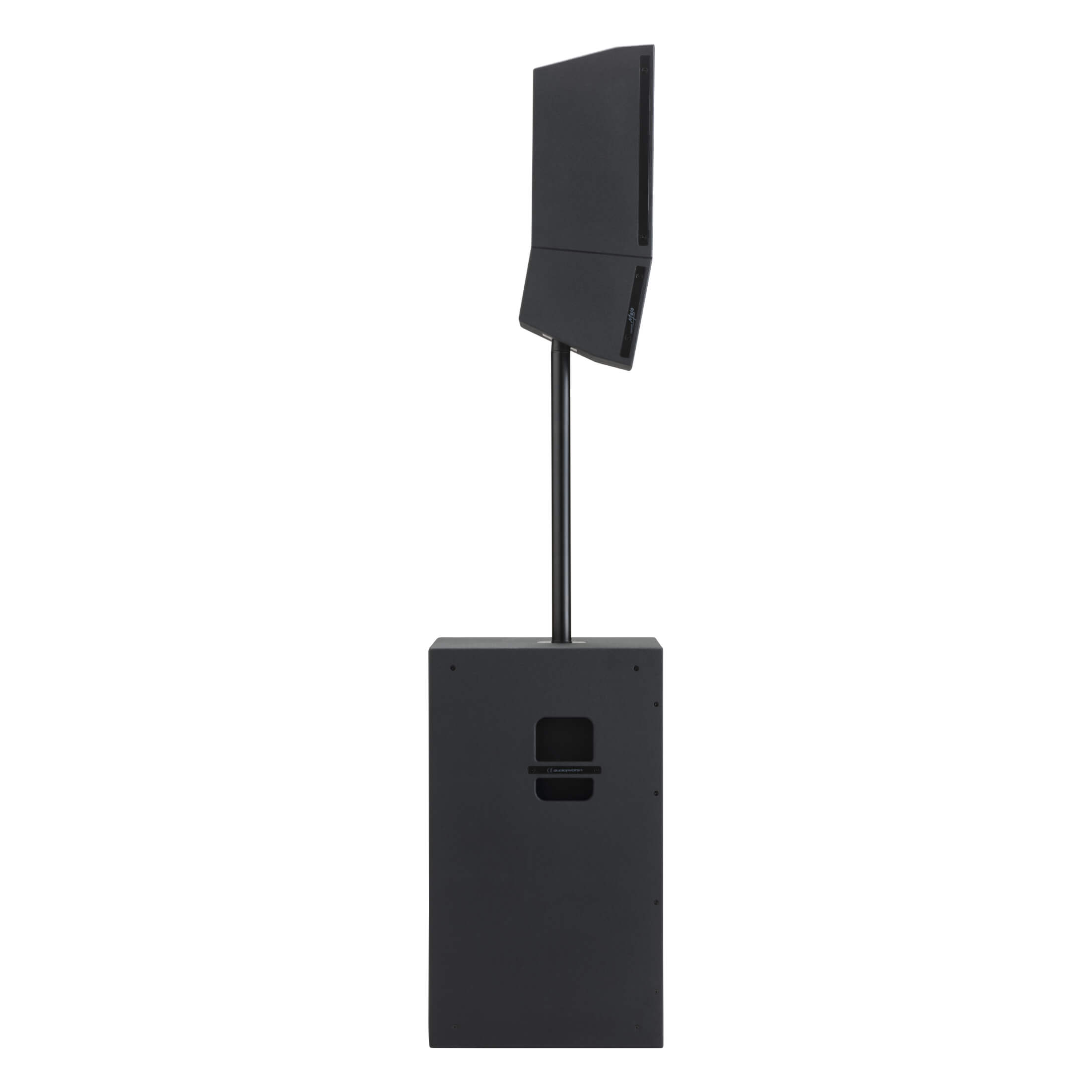

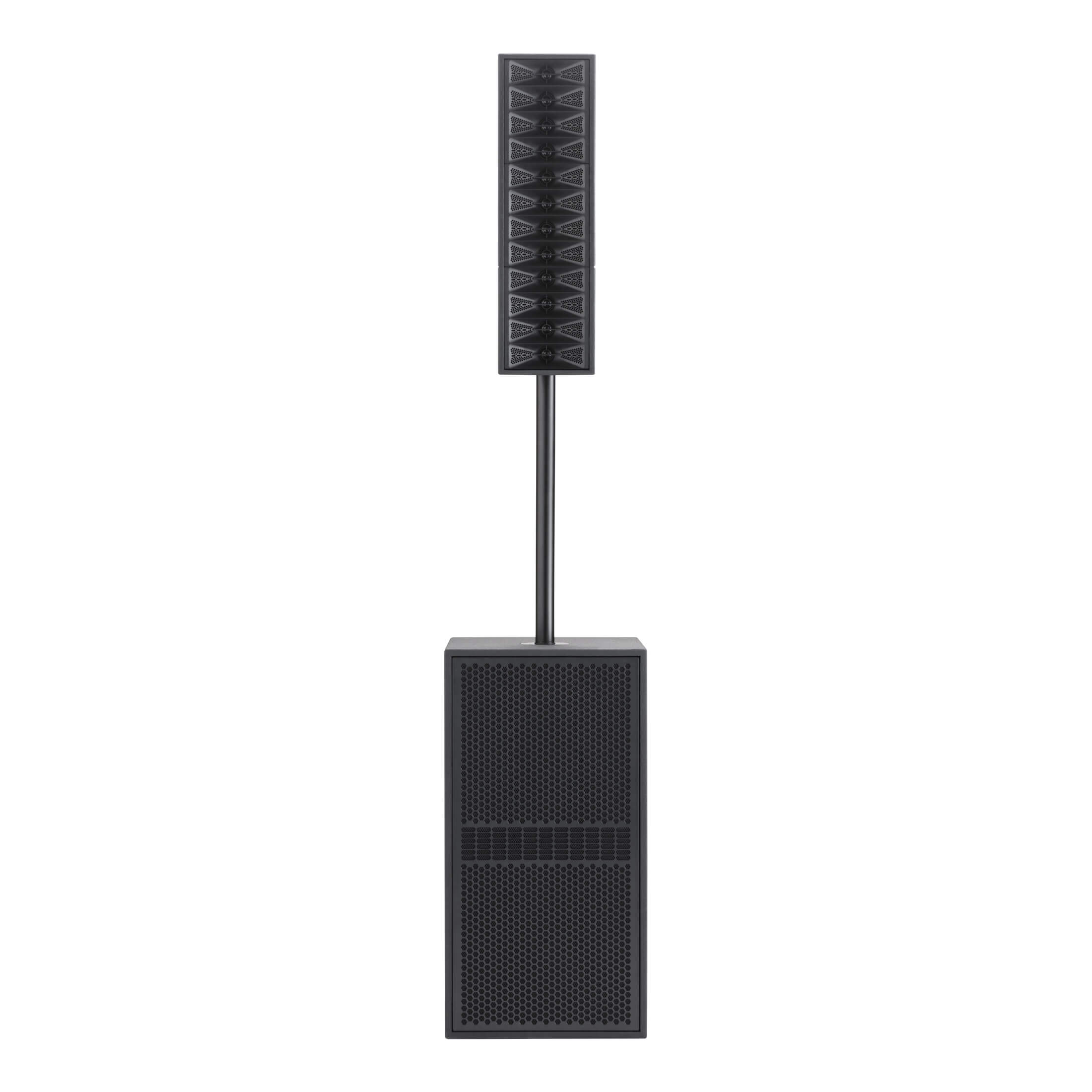

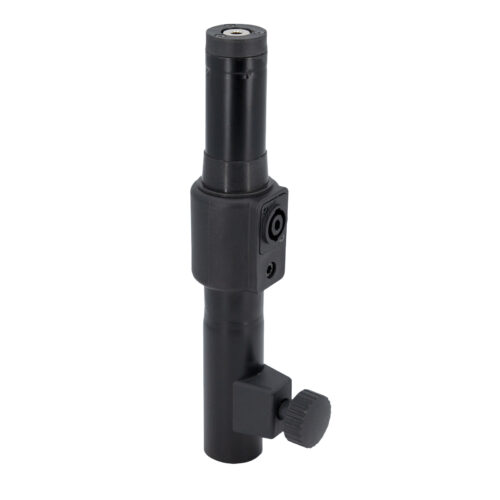

The exclusive horn ensures precise diffusion of high frequencies, offering controlled directivity. The 4 tweeters are perfectly aligned with each 5-inch driver, reducing distortion while maintaining a compact column format, with extended reach and excellent sonic clarity. The subwoofer with two 12″ drivers guarantees a wide dynamic range and a deep frequency response, reaching 35 Hz for powerful, well-defined bass. At the rear, the integrated mixer features 4 inputs, Bluetooth TWS connectivity and a high-performance DSP, offering a wide range of settings to suit any configuration. On-board amplification delivers a generous 2 x 800 W RMS at 8 ohms, ensuring sufficient power reserve for all applications. Finally, the connection between the column and the cabinet is made via a junction tube with no visible cables, for a clean, fast and aesthetic installation.

Features :

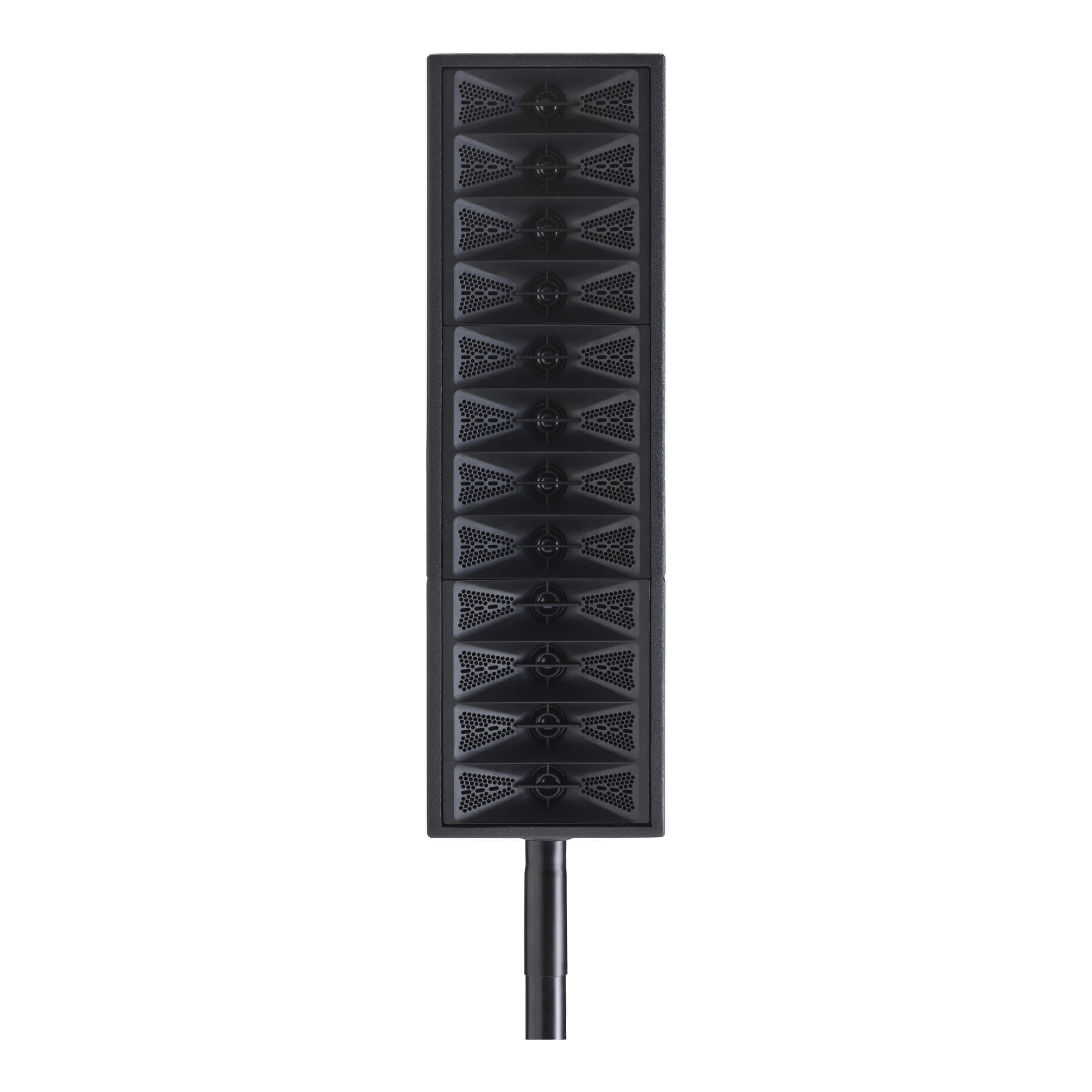

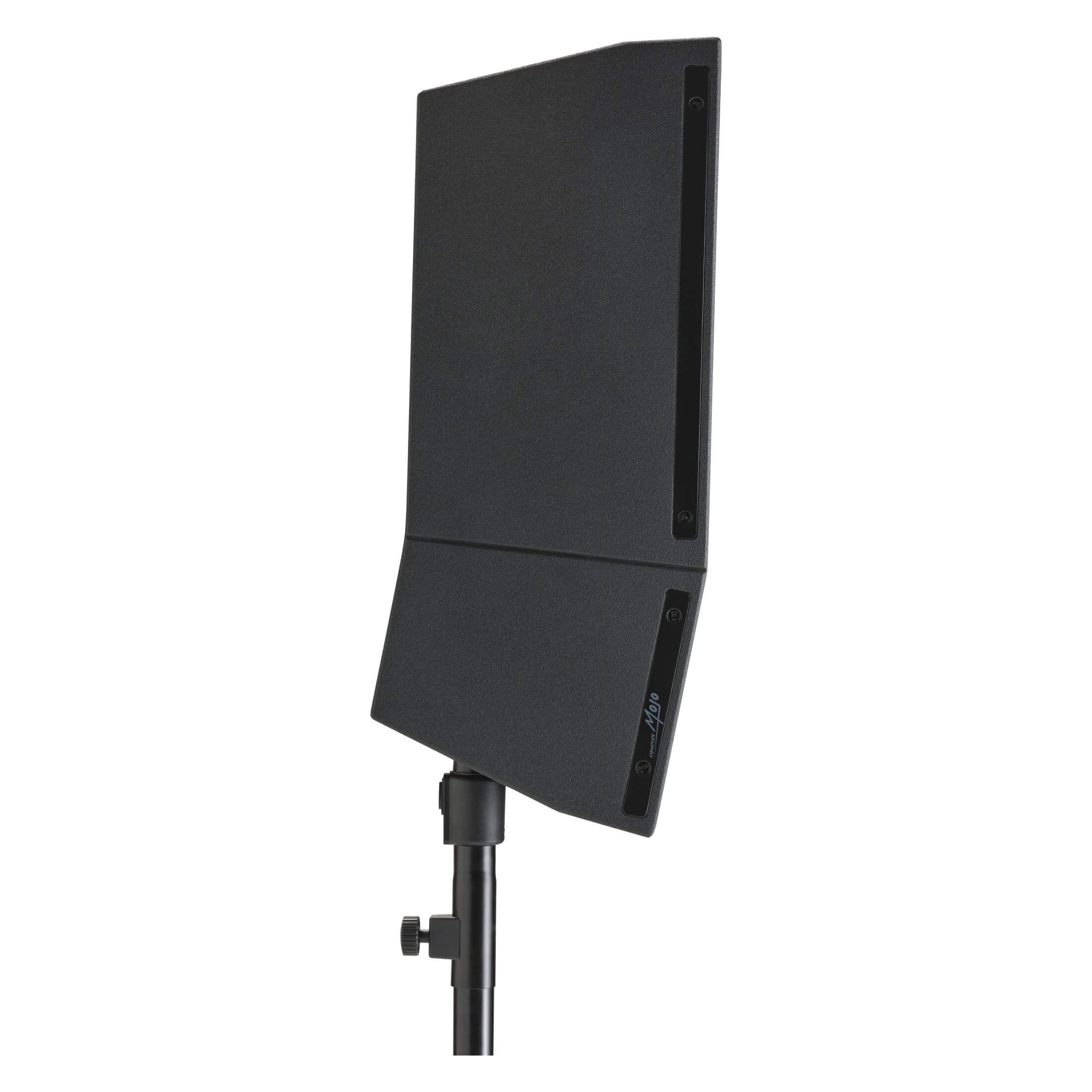

Column:
– Power: 570 RMS
– Nominal impedance: 8 Ohms
– Boomer: 3 x 5 inch neodynium
– Tweeter: 12 x 1 inch
– Dispersion: 100° x 60° (HxV)

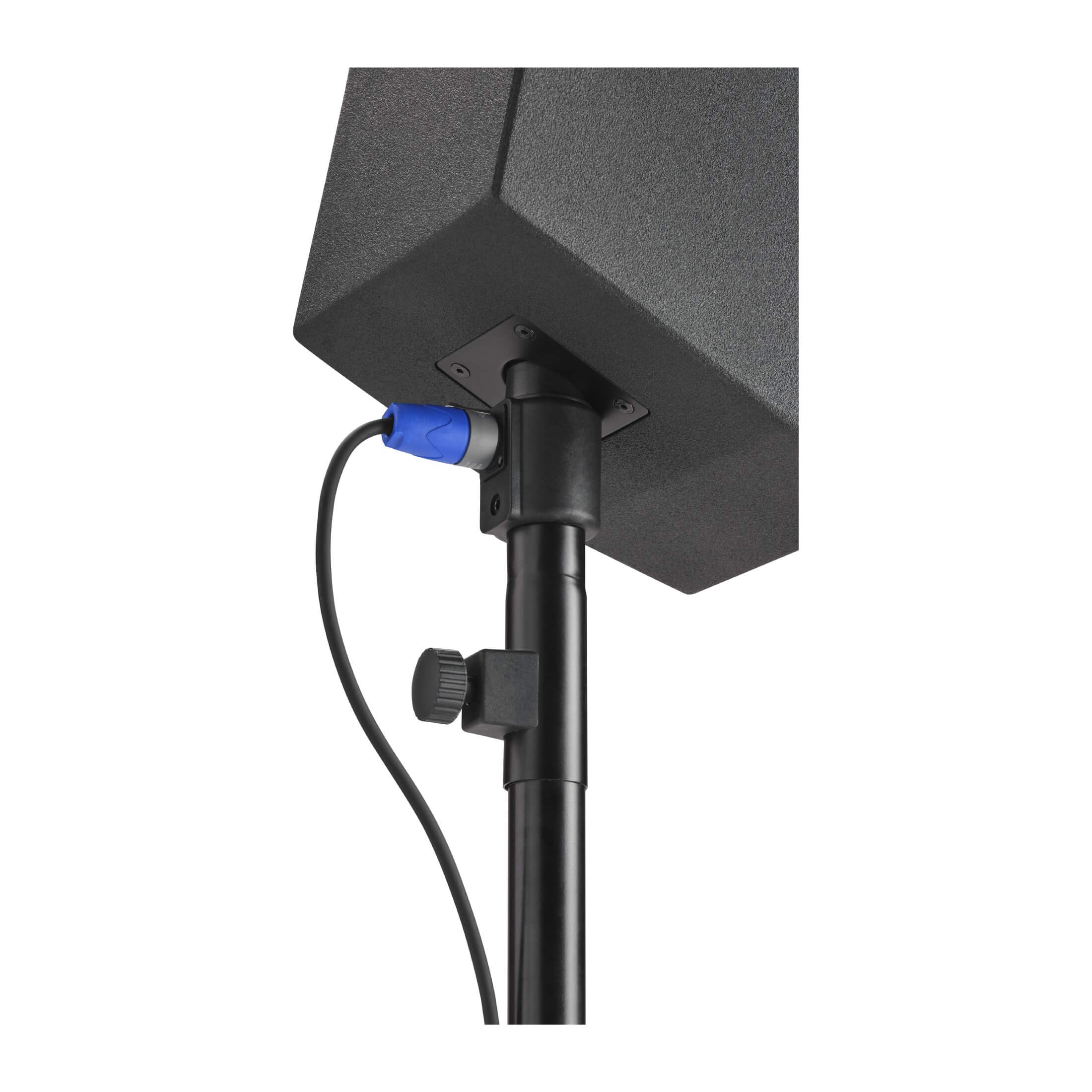

– Connector: Insert in cabinet
– Dimensions: 199 x 663 x 276 mm
– Net weight: 9.7 kg

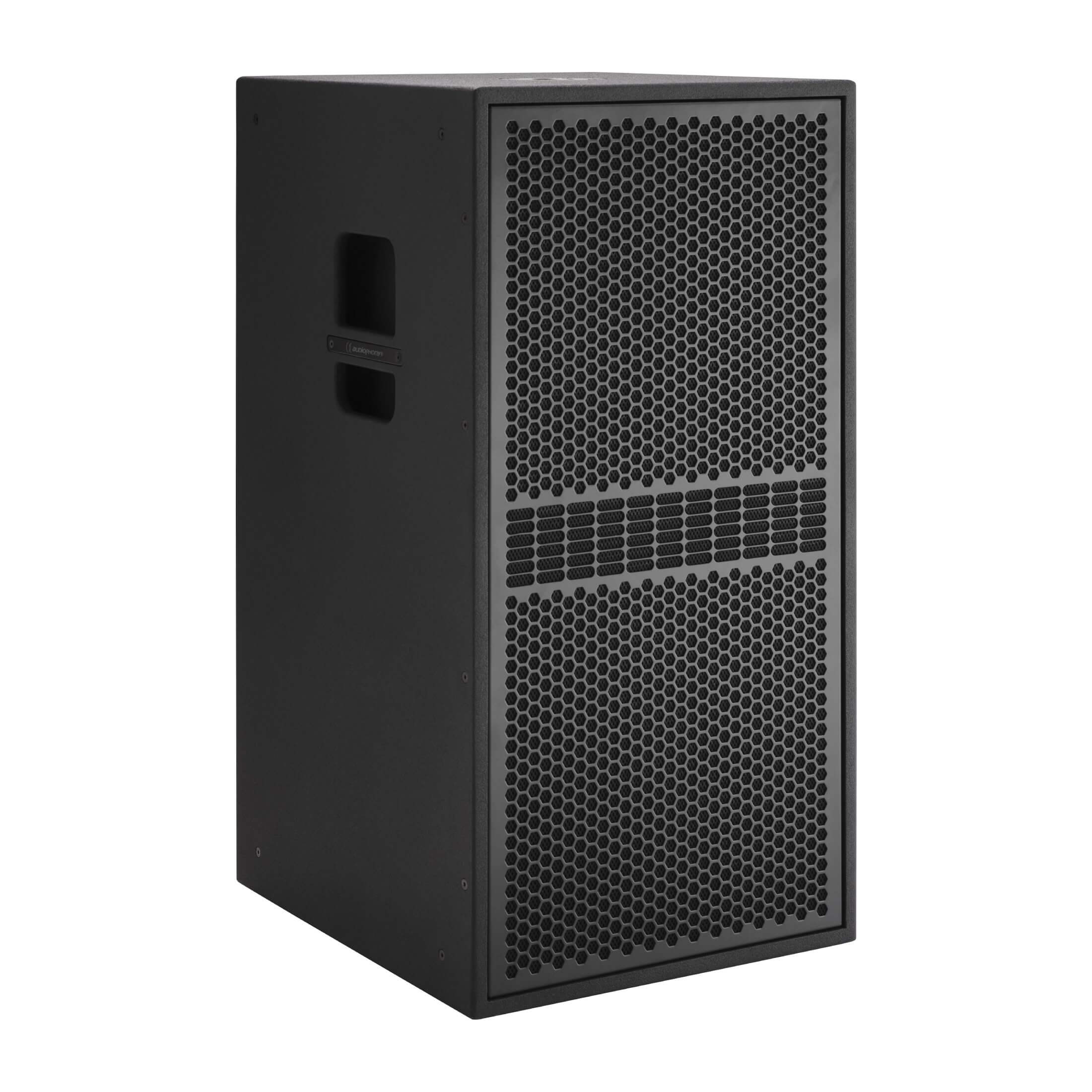

Cabinet:
– Power: 1000W RMS
– Nominal impedance: 8 Ohms
– Boomer: 2 x 12 inches
– Dimensions: 420 x 817 x 475 mm
– Net weight: 42 kg

Overall:
– Frequency response: 35 – 18,000 Hz
– Max. SPL (@1m): 130 dB

Amplification:
– Bass stage: 1 x 800 W RMS at 8 Ohms
– Mid/high stage: 1 x 800 W RMS at 8 Ohms

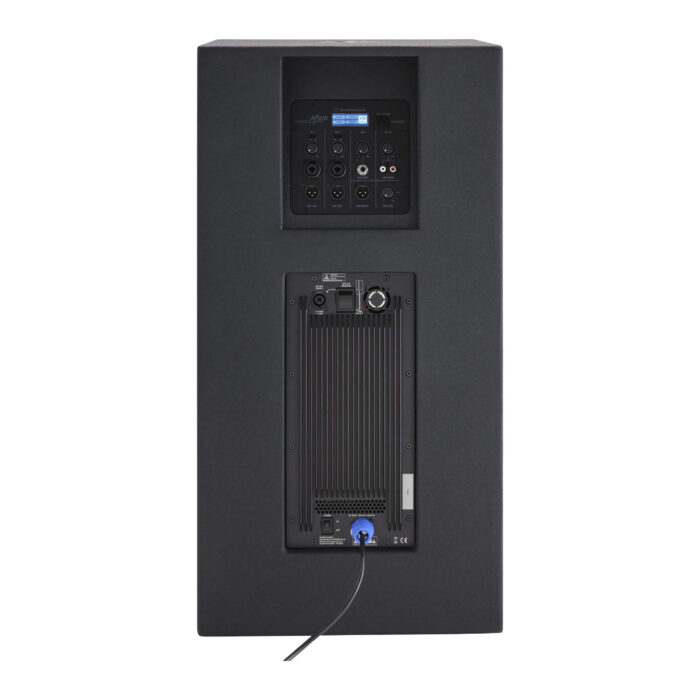

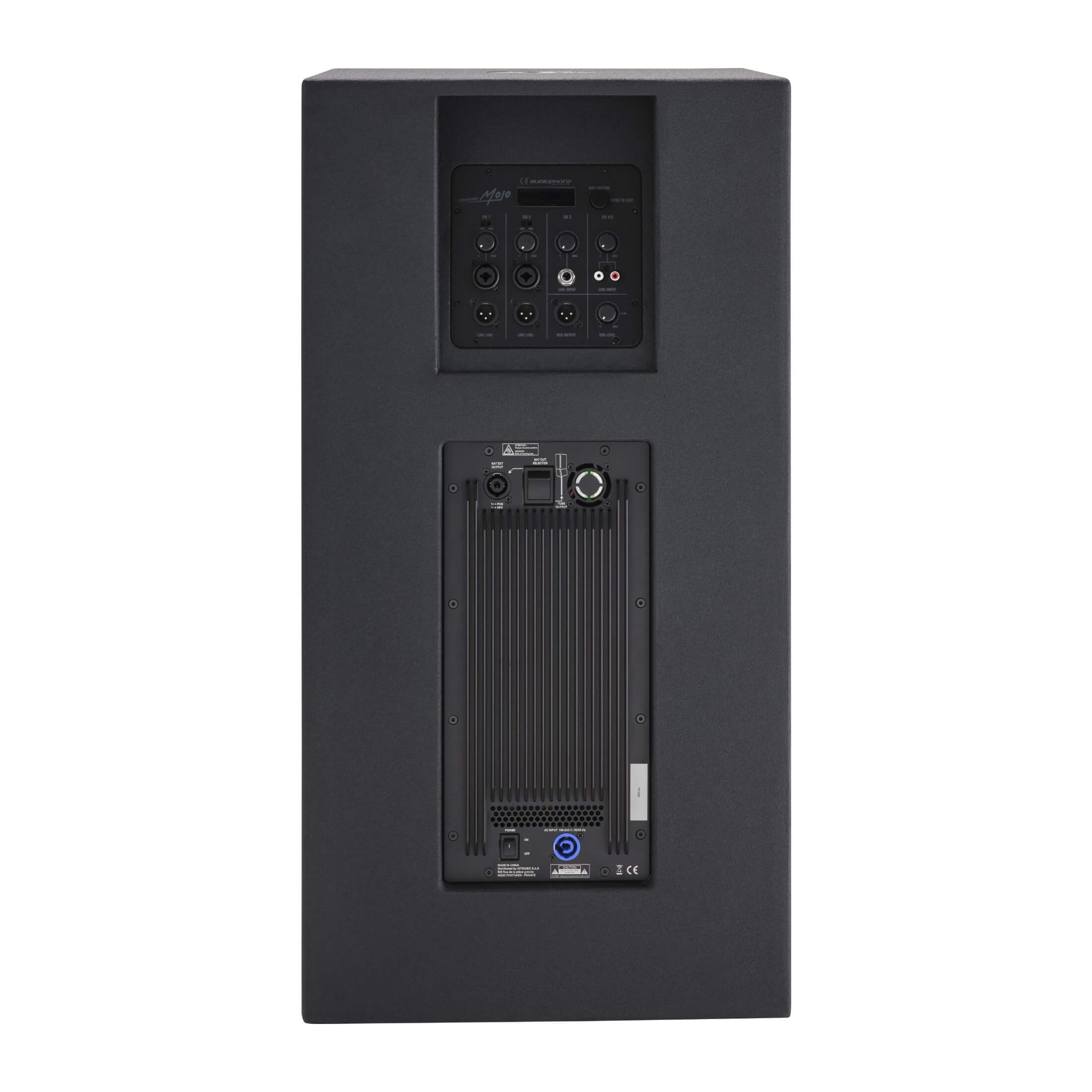

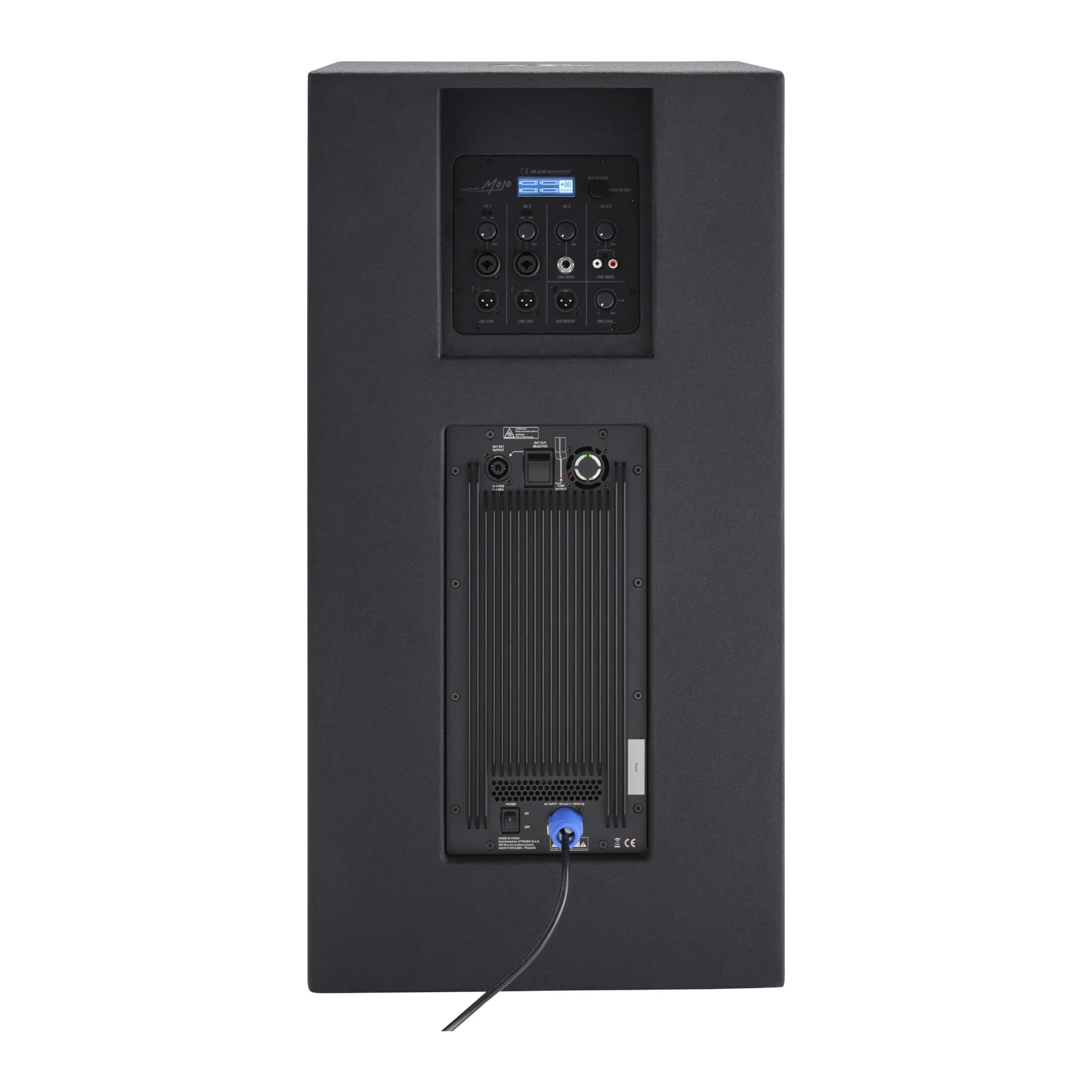

Inputs:
– CH1: 1 x XLR/line jack/mic combo
– CH2: 1 x XLR/line jack/mic combo
– CH3: 1 x line jack
– CH4/5: 1 x RCA L/R line + Bluetooth input

Input impedances:
– Microphone 1 & 2: Balanced 40 kΩ
– Line 1 & 2: Balanced 10 kΩ
– Line 3: Balanced 20 kΩ
– Line 4/5: Unbalanced 5 kΩ

Outputs:
– 1 insert on top
– 1 speakON on rear
– 1 x XLR MIX OUT balanced for output to another system
– 2 x XLR LINE OUT balanced for CH1 and CH2 repique

DSP:
– 24 bits (1 in 2 out)
– EQ / Presets / Low cut / Delay / Bluetooth TWS

Level:
– Level adjustment for each channel + Master

Sub:
– Subwoofer level control

Net weight: 9.7 kg
