MOJO1042App

The 2.1 system you can take anywhere and adapt to anything.
The MOJO1042App is a 1020 W active 2.1 system combining a 10-inch subwoofer, two satellites, an 8-channel mixer with 8 effects and Bluetooth, all controllable from your iPad or iPhone with the MOJOcontrol app. The satellites store inside the subwoofer for travel, and the system then sets up in several ways: in stereo on stands, in compact mono, or mounted on the subwoofer. A singer-guitarist with a backing track, a conference, live entertainment, a ceremony or a class: it adapts to each situation and provides sound reaching 120 dB SPL.

Power to spare.
Two built-in amplifiers deliver 1020 W: a 350 W RMS amplifier dedicated to the bass, and an 80 W RMS amplifier for each satellite. The sound stays clear and powerful at low and high volumes alike, reaching a maximum level of 120 dB SPL at 1 m.

One system, many ways to play.
The satellites mount however you like. On the two stands supplied, in 2.1 stereo, for a wide soundstage. On the subwoofer, either directly or on a pole, for a compact system. Or joined together and grouped on one side, in mono mode. Built-in contacts carry the signal between the subwoofer and the satellites with no extra cables, and a switch on the subwoofer changes between stereo and mono mode in a single move.

Ready to go, ready to play.
The two satellites store in a compartment at the back of the subwoofer, secured by a knob, and a carry handle completes the package. The system travels as a single unit: pick it up with one hand, put it down, take out the satellites and play.

Clear, precise satellites.
Each satellite combines a 4.75-inch speaker and a 1-inch compression tweeter, for present mid-range and detailed highs up to 22 kHz. Their 90° x 45° (H x V) dispersion provides even coverage in front of the system.

Bass you can count on.
The subwoofer houses a 10-inch woofer driven by a dedicated 350 W RMS amplifier, for tight, dynamic bass between 50 and 160 Hz. Its level is adjusted directly on the console, with a balance control to share the sound between the left and right satellites.

An 8-channel mixer, effects and Bluetooth.
The subwoofer’s console offers 8 channels: four XLR/jack combo inputs for mic, guitar or line (channels 1 to 4), one stereo jack or RCA input (channels 5 and 6) and one stereo 3.5 mm jack or Bluetooth input (channels 7 and 8). Channels 1 to 4 each have a level control, a tone contour and an effect level. Eight effects are on offer: Plate, Plate 2, Room, Room 2, Hall and Hall 2 reverbs, chorus and flanger. Two L/R jack outputs carry the mix at line level, to link a second system, an external amplifier or stage monitors.

Control everything from your iPad or iPhone.

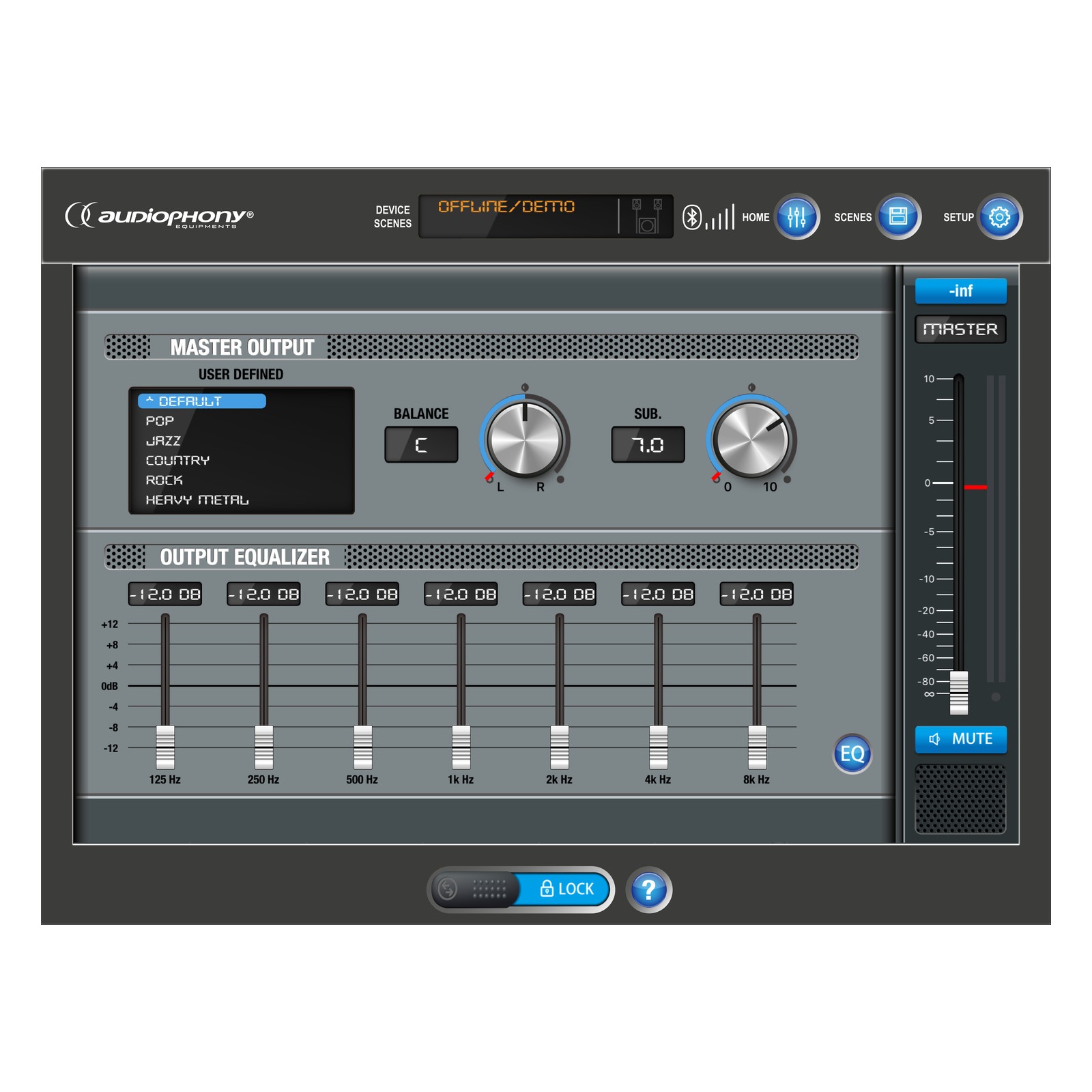

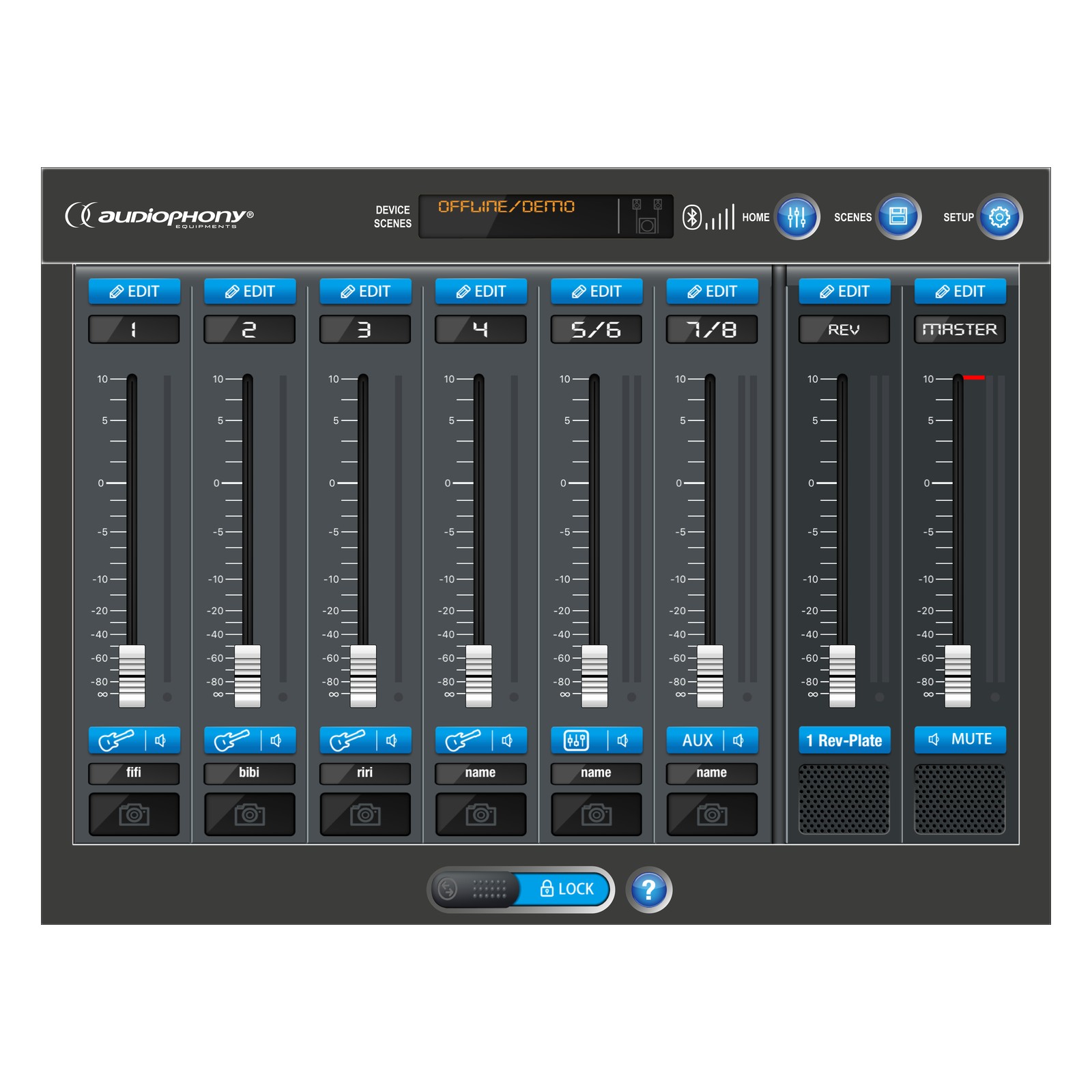

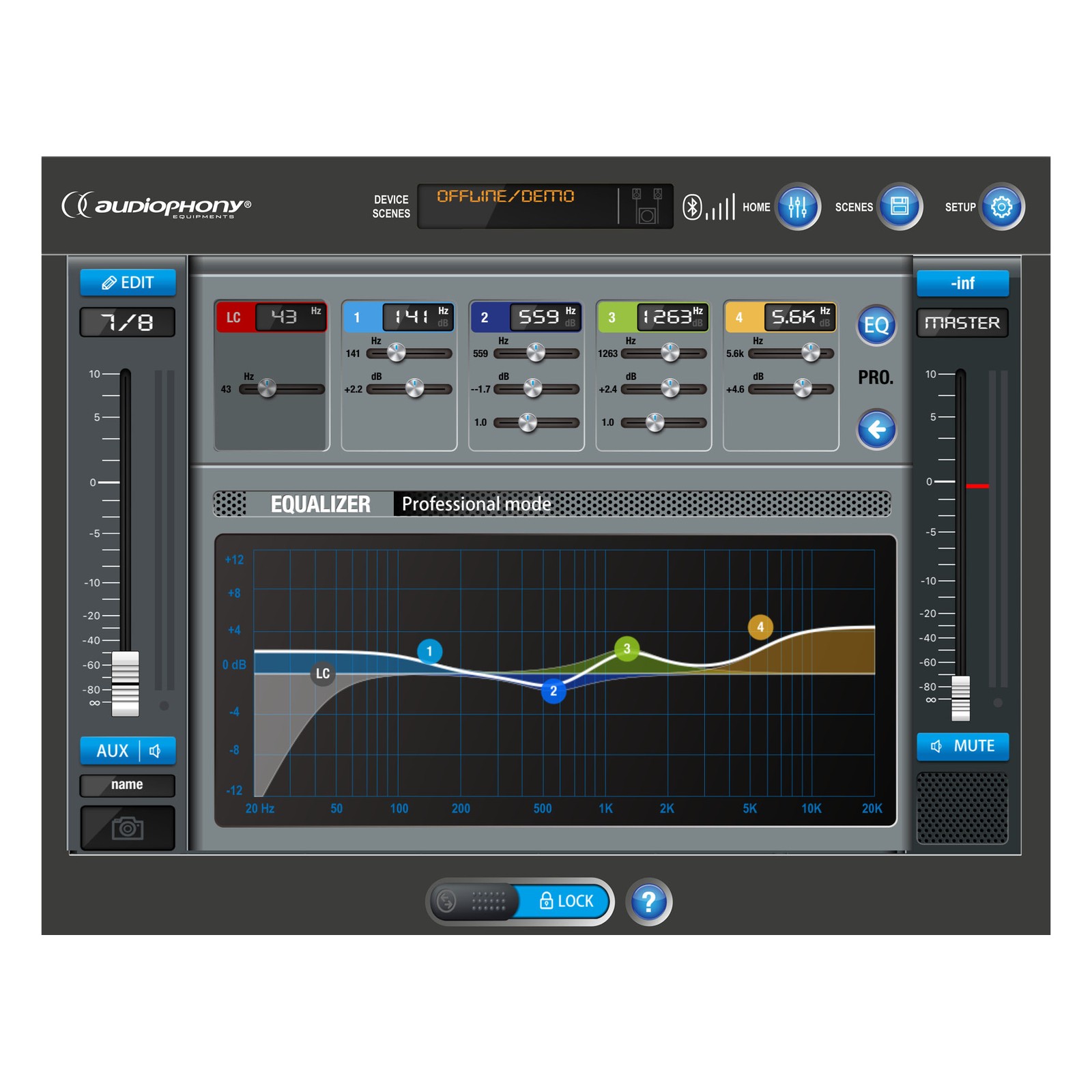

With the MOJOcontrol app (iOS), your iPad or iPhone becomes your system’s mixing desk: a direct Bluetooth connection is all you need, with no network and no cables. You get the console’s controls plus extra functions: level for each channel, parametric EQ and compressor per channel, effects, graphic output EQ, subwoofer level and balance. You can even save your settings as scenes, to recall the sound of a gig, a venue or an artist in an instant. The app connects once you switch on the dedicated switch on the subwoofer.

A cover with a trolley to take everything with you.
To take your MOJO1042App on the road, choose the COV-MOJO1042App protective cover, available as an option. The subwoofer with its satellites and your cables fit inside, and its internal storage pocket keeps your accessories close to hand. Fitted with a trolley, it wheels to the stage with no effort. It shields your system from dust, scratches and minor knocks, both in transit and in storage. Your MOJO1042App keeps looking as good as new, gig after gig.

Key features:

• 1020 W amplification (700 W + 2 x 160 W max), Class D, 120 dB SPL max (at 1 m)
• 10-inch subwoofer, 2 x 4.75-inch satellites with 1-inch compression tweeters, 50 Hz to 22 kHz
• Satellites store inside the subwoofer, carry handle
• 2 speaker stands and 5m cables supplied
• Stereo 2.1 and mono modes, mounting on stands, on the subwoofer or on a pole
• 8-channel mixer: 4 XLR/jack combos, 1 stereo jack/RCA, 1 stereo 3.5 mm jack/Bluetooth
• 8 effects: reverbs, chorus, flanger, tone contour per channel
• MOJOcontrol app (iOS, iPad and iPhone): mixing, EQs, compressor, effects, scenes
• Bluetooth
• 2 L/R line-level jack outputs

Technical specifications:

• Amplification: 2 Class D amplifiers, 350 W RMS / 700 W max (bass, 4 Ω) and 2 x 80 W RMS / 160 W max (mid/high, 8 Ω), 1020 W max in total
• Satellites (x 2): 80 W RMS / 160 W max, 8 Ω, 1 x 4.75-inch speaker, 1 x 1-inch compression tweeter, 155 Hz – 22 kHz, 90° x 45° (H x V) dispersion
• Subwoofer: 350 W RMS / 700 W max, 4 Ω, 1 x 10-inch woofer, 50 – 160 Hz
• Frequency response: 50 Hz – 22 kHz
• Maximum sound pressure level: 120 dB SPL (at 1 m)
• Inputs: 4 x XLR/jack mic/guitar/line combo (channels 1 to 4, selector per channel), 1 x stereo jack + RCA line (channels 5 and 6), 1 x stereo 3.5 mm jack + Bluetooth (channels 7 and 8, Aux/Bluetooth selector)
• Outputs: 2 x L/R line jack (MONITOR OUT), 2 x jack for satellites
• Mixer: level control per channel, tone contour and effect level (channels 1 to 4), subwoofer level, balance, master volume
• DSP: 8 effects (Plate, Plate 2, Room, Room 2, Hall and Hall 2 reverbs, chorus, flanger), contour per channel
• App: MOJOcontrol (iOS, iPad and iPhone), Bluetooth connection
• Bluetooth: audio streaming
• Satellite mode: stereo (2 outputs) or mono (satellites linked)
• Satellite mounting: M6 insert, bracket with 18 mm socket, direct contact on the subwoofer
• Subwoofer mounting: 25 mm socket
• Speaker stands: 2 supplied
• Satellite dimensions: 225 x 140 x 110 mm
• Satellite weight: 1.9 kg
• Subwoofer dimensions: 345 x 450 x 400 mm
• Subwoofer weight: 14.5 kg
