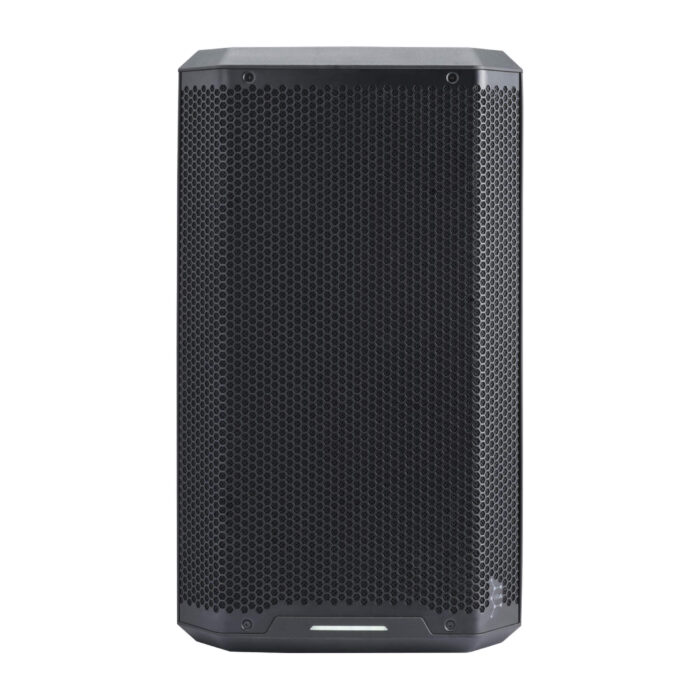

CARBON12A

– Horn with extended dispersion control zone
– 1.35″ compression driver with polymer diaphragm. HF sound is much clearer and more transparent than that of the titanium-diaphragm tweeter.
– Nitrogen-assisted injection-molded plastic housing for greater rigidity and durability: housing strength is increased by 20%, which also enhances audio performance.
– Lightweight, fanless Class D amplifier module with 1000 W + 500 W RMS power reserve
– 2 Line/Mic inputs with Line/Mic auto switch + BT TWS
– 1 LINK output

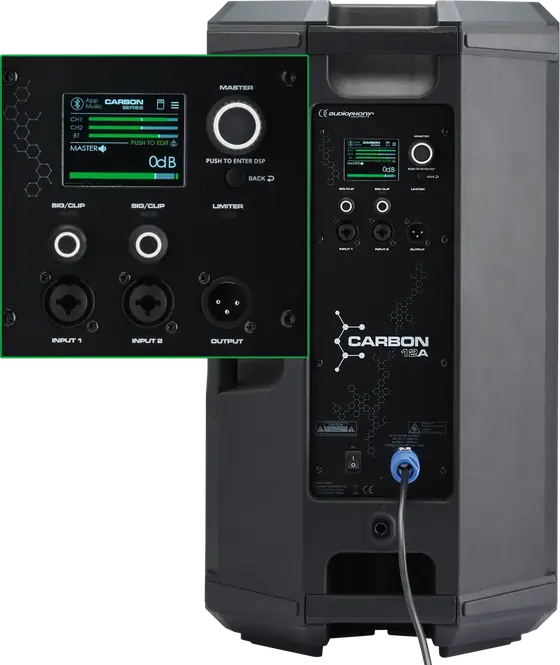

– Powerful DSP with 2.4″ color display

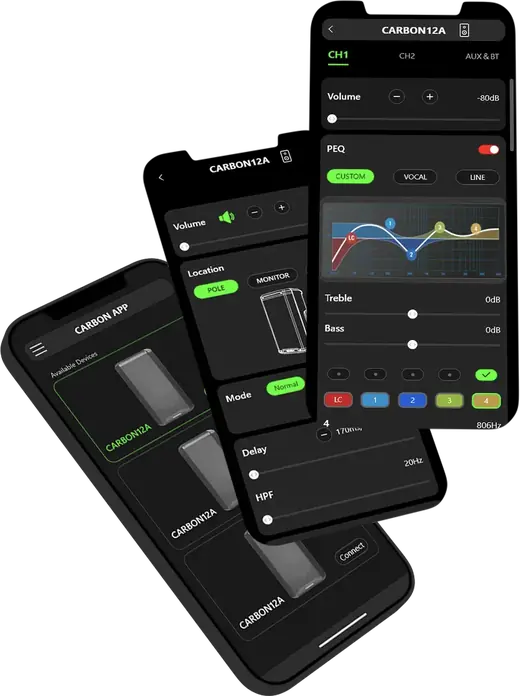

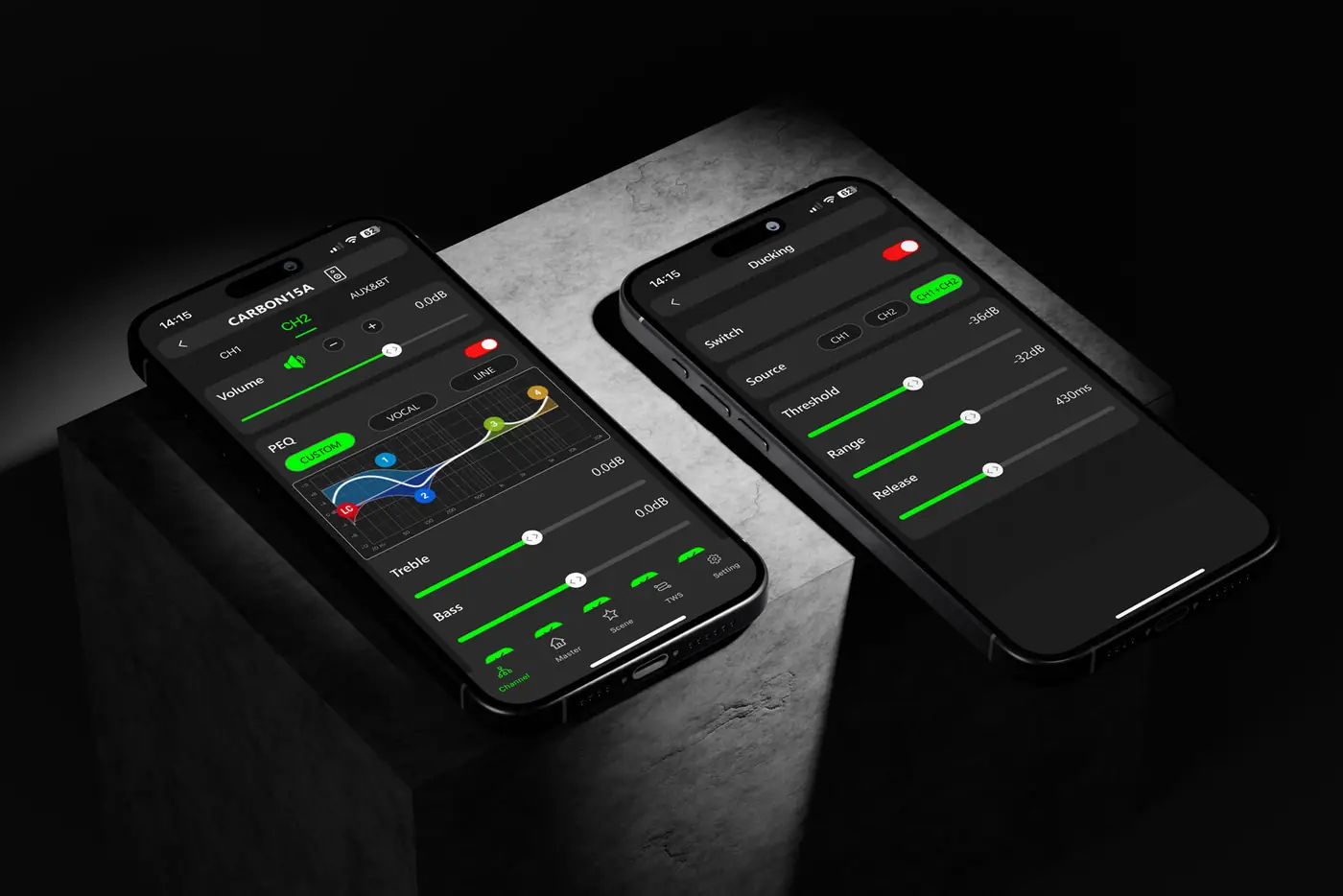

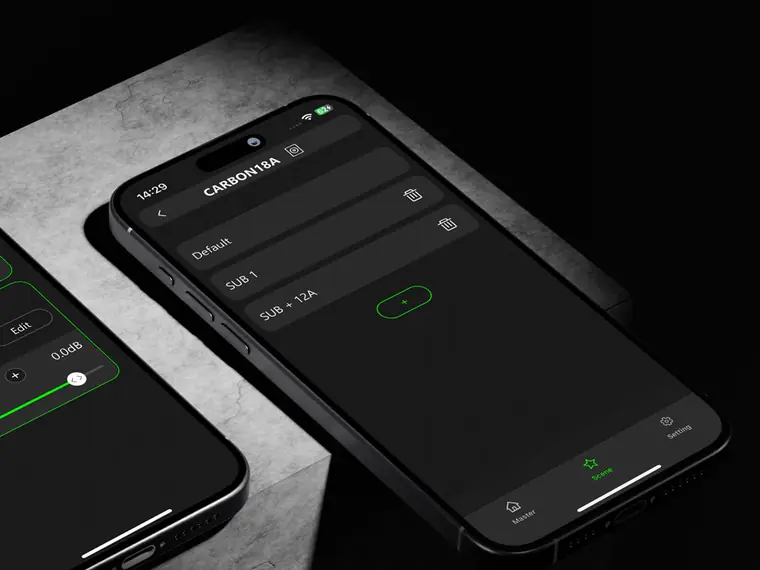

– 4-channel control application with setup, PEQ, scene, position, delay
– Integrated DSP with access to functions

Master:

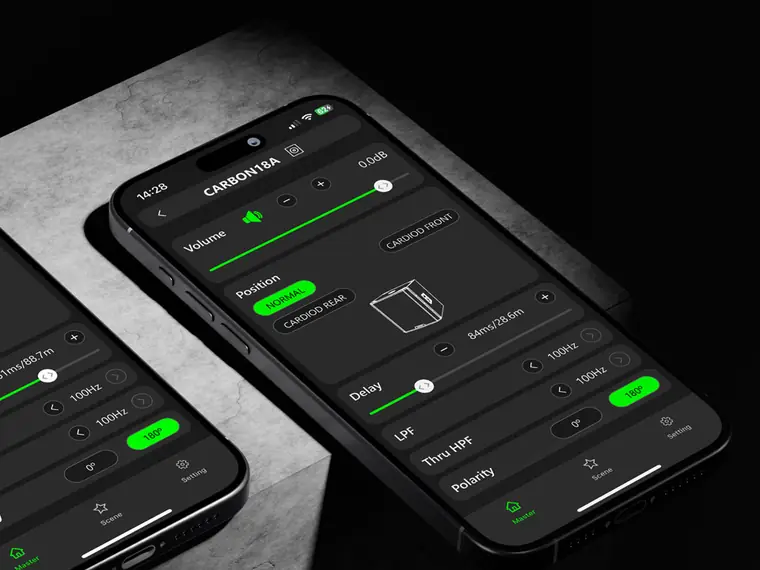

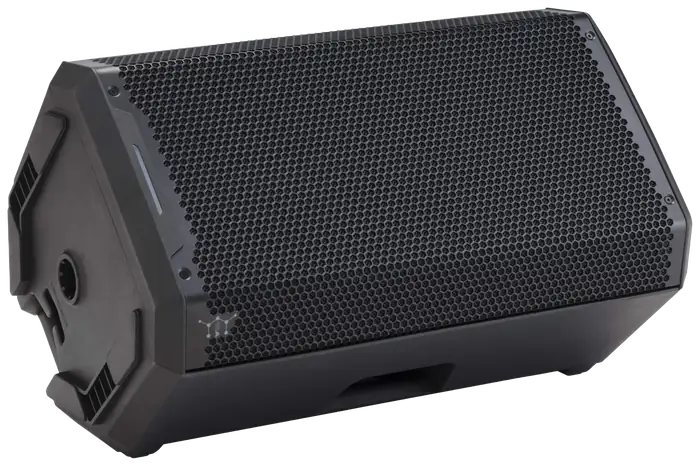

– Modes (Normal, Live, Club, Speech), Position (Foot, Monitor, Stand)
– Delay, HPF, Ducking with source, threshold, attenuation and release time control

Input by channel :

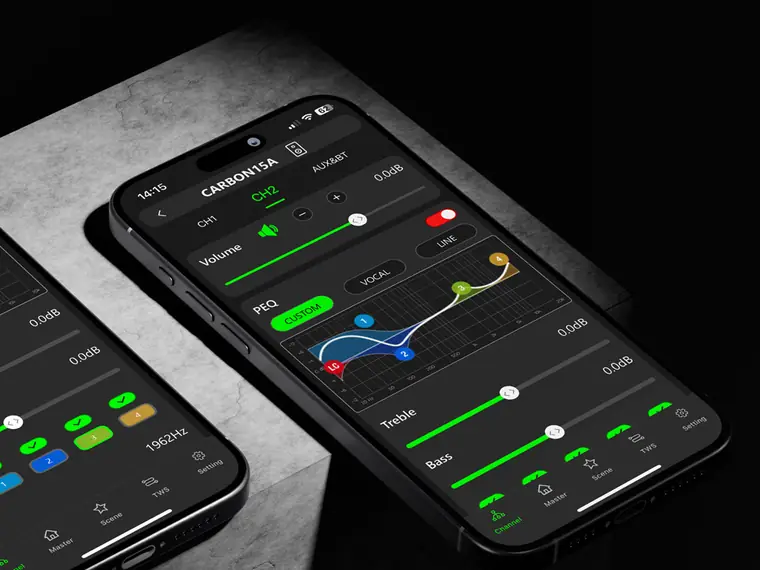

– Equalizer, Treble, Bass, Presets (Live, Vocal, Custom)

Output mode:
– Mix or link.

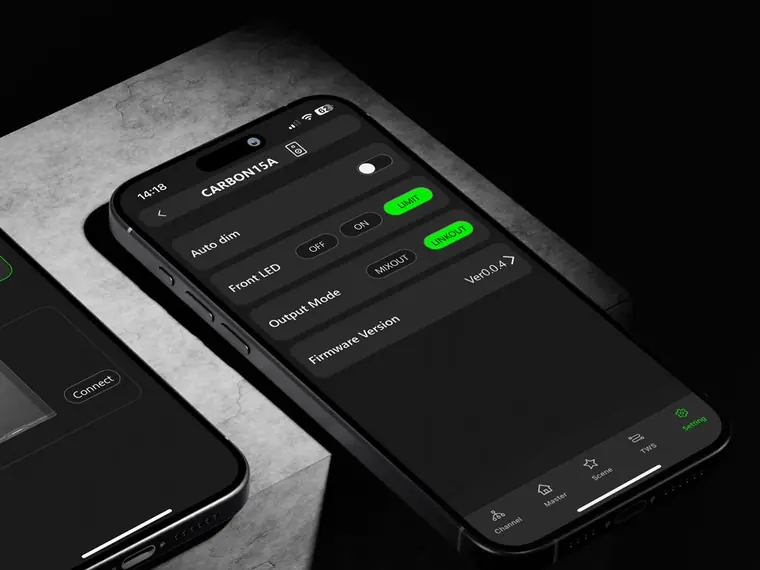

– Activate TWS streaming and application

Others:
– Display lighting
– Front LED management (Limit, ON, OFF)

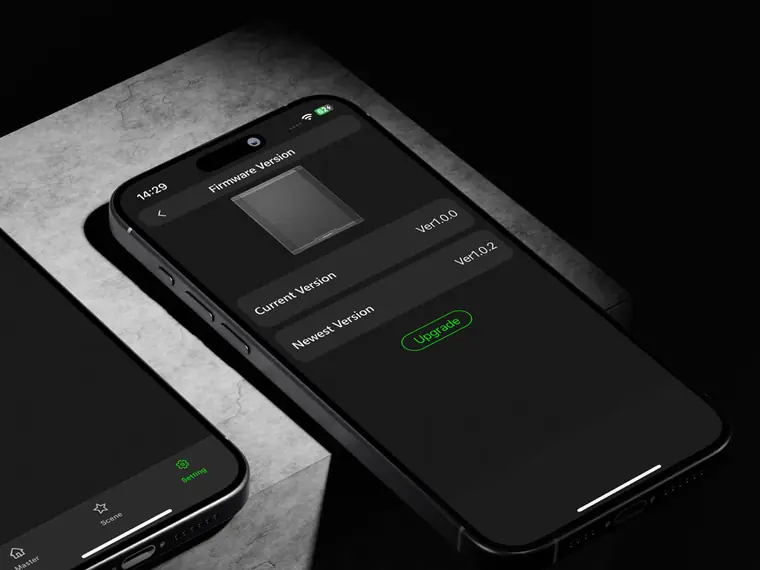

– Firmware version
– Restore factory settings

Technicaliques :

Amplification:
– Class D 1000 W RMS / 2 Ohms for bass
– Class D 500 W RMS / 4 Ohms for treble

Total amplifier power
– 1500 W RMS / 3000 W max

Frequency response:
– 50 Hz – 20 KHz

Power supply :
– 220-240V AC 50 Hz switching SMPS

Dispersion H x V:
– 90° x 70°.

Sound pressure level SPL :
– 130 dB max/1 m

Woofer:
– 12 inches
– 2.5 inch coil
– Magnet 49.8 Oz
– 2 Ohms – 500 W AES / 1000 W Prog

Tweeter :
– 1.35-inch High Polymere motor
– 4 Ohms – 50 W AES

Inputs :
– 2 line inputs on COMBO XLR/JACK with auto Line/Mic switch
– 1 Bluetooth input

Output:
– 1 line output on XLR + Bluetooth TWS

Settings :
– Input volume
– DSP with multiple settings (Position, Mode, Equalizer, LED, Reset, Info)

Protection :
– Short-circuit, thermal and limiter protection

Construction and fittings:
– Plastic case with nitrogen injection
– Integral metal grille
– LED Power/Clip on front
– 3 handles on side, top and bottom
– 3 M10 inserts

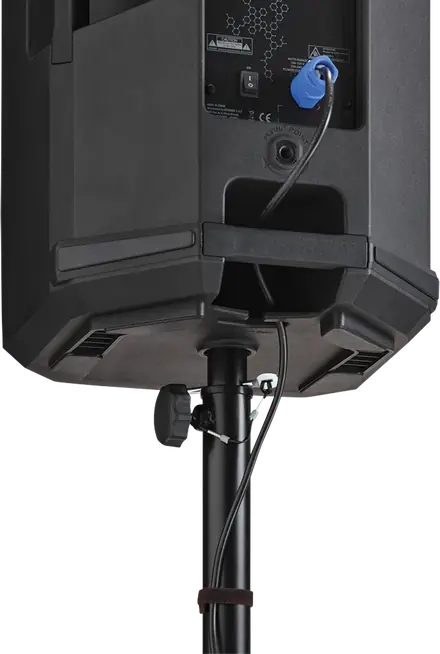

– 36 mm base for stand
– 6 rubber pads 4 bottom + 2 sides
– Net weight: 17 kg
– Dimensions: 360 x 353 x 628 mm
